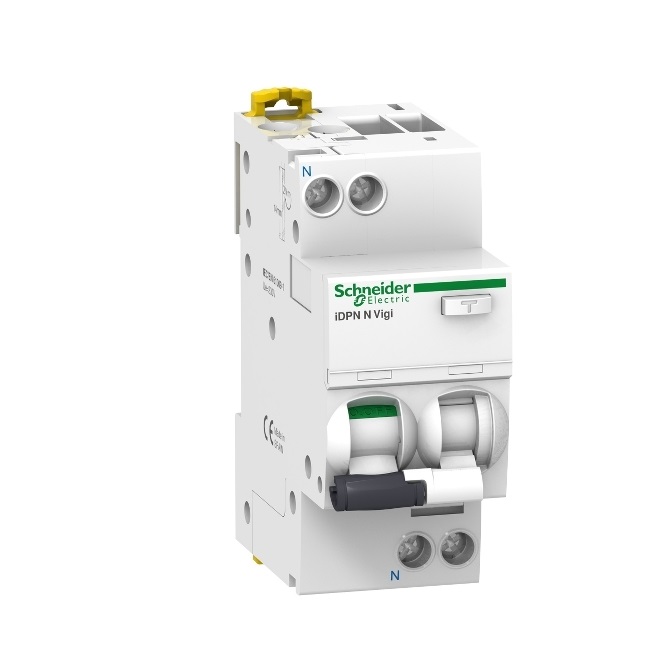

SCHNEIDER A9D31620 Residual Current Breakers with Over-current Protection

Range: Acti 9

Product or component type: Residual current breaker with overcurrent protection (RCBO)

Device short name: IDPN N Vigi

Curve code: C

Earth-leakage protection class: Type AC

Poles description: 1P + N

[In] rated current: 20A

Breaking capacity: 6000A

Earth-leakage sensitivity: 30mA

[Ue] rated operational voltage: 220...240 V AC 50 Hz

Dimensions (HxWxD): 85x36x73mm

IP degree of protection: IP20 conforming to IEC 60529

Ambient air temperature for operation: -5-60°C

Ambient air temperature for storage: -40-85°C

Standards: EN/IEC 61009-2-1

Weight: 125g
