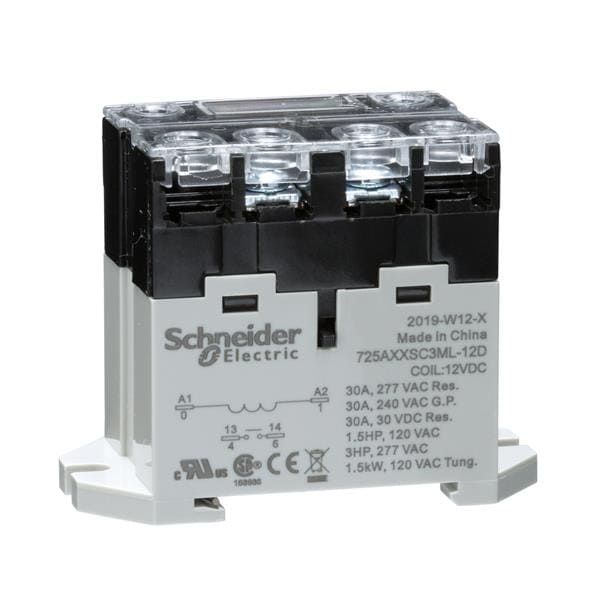

Schneider Electric Relays 725AXXSC3ML-12D Standard Power Relay SPST-NO 30 A, Screw Term
Model725AXXSC3ML-12D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 33.1 mm
Height: 67.7 mm
Length: 53.2 mm
Coil Type: Non-Latching
IP Rating: IP20
Unit Weight: 120 g
Coil Voltage: 12 VDC
Contact Form: SPST (1 Form A)
Mounting Style: Panel Mount
Coil Resistance: 75 Ohms
Coil Termination: Screw
Contact Material: Silver Alloy (Ag)
Power Consumption: 1.9 W
Switching Voltage: 300 VAC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Screw
Contact Current Rating: 30 A
Maximum Switching Current: 100 mA
