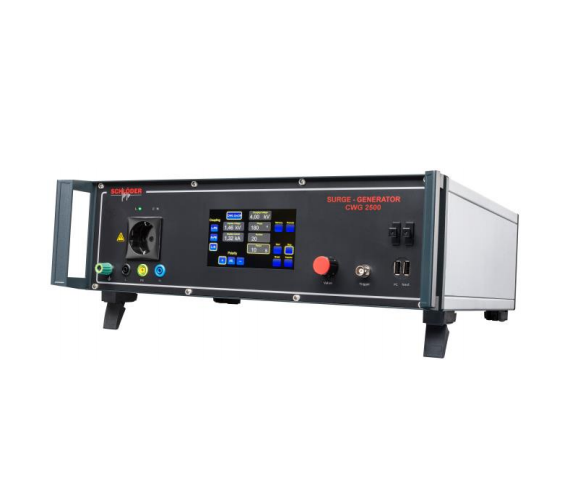

Surge / Combined wave generator
Charging voltage: 0,2 – 4,4 kV
Charging time: ≤ 10 sec
Number of pulses: 1 – 999
Repetition rate: 10 – 990 sec
Phase angle: φ = 0° - 359°, 1° steps, mains-synchronized for 50 + 60 Hz
Polarity: positive, negative, alternating
Trigger: manually or externally
Interface USB (virtual COM Port) optional: optical with fiber optics
HV output: ungrounded and ground referred
Memory function: select test levels 1 – 4 (standard), 32 memory positions
Discharge parameters: display of discharge surge voltage / surge current after discharge
Operating temperature: 0 - 40 °C
Dimensions: 19" housing, 3 U
Weight: approx. 18 kg
Supply voltage: 100-240 V / 47-63 Hz / 100 VA
Coupling network
Nominal voltage AC: max. 230 V / 16 A 50 / 60 Hz
Nominal voltage DC: max. 270 V / 16 A
Phase indication: LED red; LED green
Balanced coupling: L – N: 18 µF
Unbalanced coupling: L – PE, N – PE: 9 µF + 10 Ω
EUT connection: Schuko (protectionearth) outlet + laboratory sockets
Ground connection: ground jack at front and rear panel
Options
CWG 520 3-phase coupling network 4 x 16 A
CWG 523 3-phase coupling network 4 x 32 A
CWG 524 3-phase coupling network 4 x 60 A
CWG 52x – 550 HV option up to 550 VAC L-L
CWG 1525 CDN for 2 unscreened, balanced lines, 1 A
CWG 1526-4 CDN for 2 unscreened, balanced lines, 4 A
CWG 1526-10 CDN for 2 unscreened, unbalanced lines, 10 A
CWG 1528 CDN for 4 unscreened, unbalanced lines, 6 A with RS232 interface
CWG 550 18 µF capacitor in a housing
CWG 551 9 µF capacitor + 10 Ω resistor in a housing
CWG 553 0,5 µF capacitor + 40 Ω resistor in a housing
ZUB LWL OPTO-MOD Optic interface with 2 connectors for optic fiber cables (retrofit)
ZUB LWL OPTO-MOD-N Optic interface with 2 connectors for optic fiber cables
(upon ordering a new equipment)
ZUB LWL USB-ADAPTER Optic fiber cable, 5 m, USB to optic interface connector
ZUB LWL-100 Optic fiber cable, 1 m, optic interface connector on both sides
ZUB LWL_30 Optic fiber cable, 30 cm, optic interface connector on both sides
EMV-SOFT Control software for surge, burst and voltage dips generators
