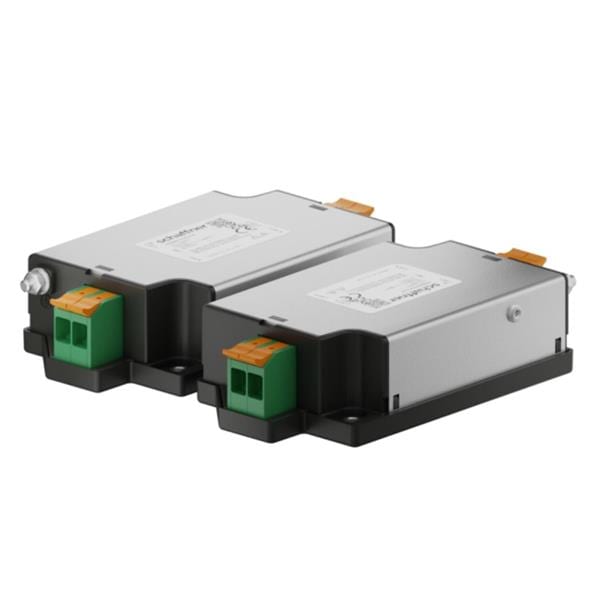

Schaffner FN2500-20-103-C13 Power Line Filters Single phase filter 1HU 20 A, clamp connector, 10nF
ManufacturerSchaffner(View more products from this manufacturer)
ModelFN2500-20-103-C13
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 59 mm
Height: 35 mm
Length: 97.7 mm
Approvals: CE, CQC, CSA, ENEC14, UR
Inductance: 2.4 mH
Capacitance: 0.01 uF
Filter Type: 1-Phase EMI/EMC Filter
Unit Weight: 300 g
Current Rating: 20 A
Mounting Style: Rack Mount
Voltage Rating: 277 VAC
Leakage Current: 870 uA
Termination Style: Push In
Operating Frequency: 0 Hz to 60 Hz
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
