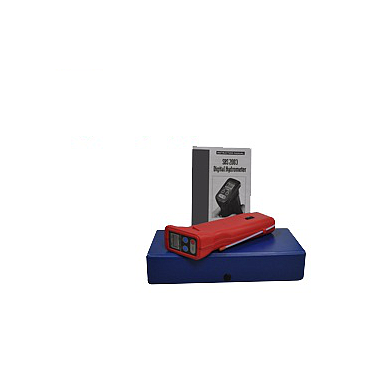

SBS-2003 Digital Battery Hydrometer / Density Meter (1.000 ~ 1.300)

Specification
Features:
- Measures specific gravity and temperature
- Indicator: LED Display
- Power Supply: DC 9V alkaline battery

- Range: 1.000 to 1.300
- Accuracy: +/- 0.002
- Automatically temperature compensated to 77°F (25°C)
- Suction tube: 9.5”
- Compact and only 8 oz.
- Carrying case
- Time savings: 5 times faster than conventional methods
- For lead acid batteries only
- Bluetooth data transfer to PC/Laptop
- 1000 reading memory Excel compatible data format for easy import into reports
ormation:
+ 2003-TUBE 9" sampling tube for SBS-2003
+ 2003-SPR-PRT-KIT Spare parts kit includes: O-ring, sample, chamber w/ rubber pump, (3) 9" sample tubes
+ 2003-HOL Holster w/ belt for SBS-2002 or SBS-2003
+ 2003-CASE Case for SBS-2003



 - SBS-2003 Data Sheet

  - SBS-2003 Manual

  - SBS-2003 Cleaning Guide

 - Data Capture Temp.

rdering Information
Part No.	Description
SBS-2003	Digital specific gravity tester (ºF and ºC)



Accessory Ordering Information
Part No.	Description
2002-SPR-PRT-KIT	Spare parts kit includes: O-ring, sample chamber w/ rubber pump, (3) 9" sample tubes
2002-HOL	Holster w/ belt for SBS-2003



Specifications
Measured Items	Specific gravity of sulfuric acid temp. compensated to 77° F (25° C) Temperature of sulfuric acid as electrolyte in lead-acid batteries
Display	LCD; specific gravity and temperature
Measuring Time	Within 3 seconds after pushing "START" button
Measurement Range	Specific gravity: 1.000 to 1.300 Temperature: 41 to 104° F (5 to 40° C)
Measurement Accuracy	Specific gravity: ±0.002 @ 50 to 86° F (10 to 30° C) Temperature: ±1.8° F @ 50 to 86° F (±1° C @ 10 to 30° C)
Resolution	Specific gravity: 0.001 Temperature: ±1° F (±1° C)
Method of Detection	Light refraction system
Size & Weight	2.75" x 1.75" x 8.25"; 0.66 lbs.
Suction Nozzle	9.5"L x 1/8" dia. flexible silicone tube
Power Supply	9V alkaline battery
