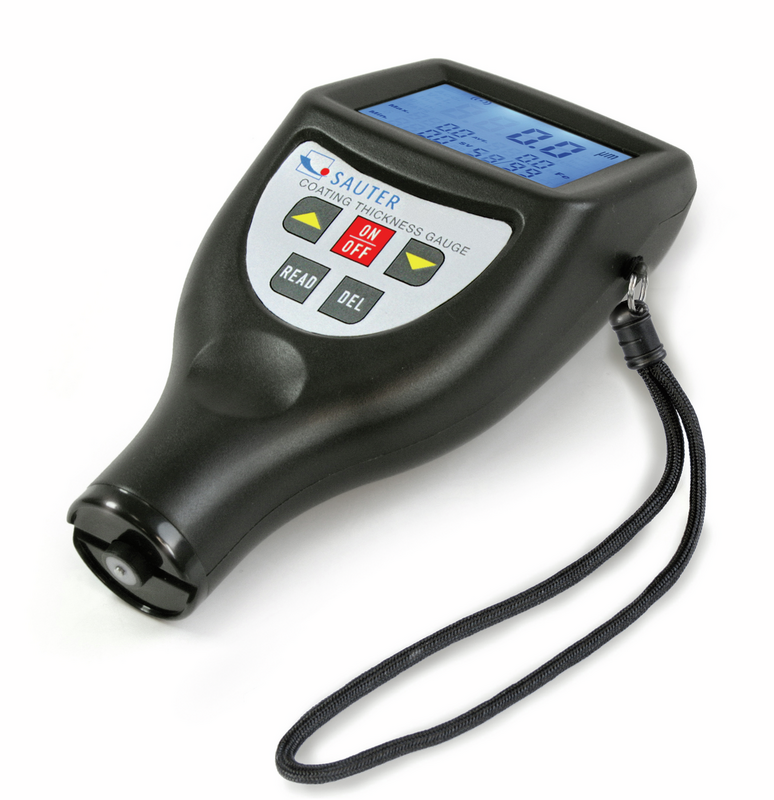

SAUTER TF 1250-0.1FN Premium coating thickness gauge (0,1 µm; 1 µm, 100 µm; 1250 µm)

Units: µm, inch (mil)

Battery: 2×1.5 V AAA

Material housing: plastic

Tolerance (% of [Max]): 3%

Sensor placement position: internal

Test object thickness coating: Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N

Coating thickness gauge sensor type: FE, NFE

Dimensions completely mounted (W×D×H): 126×65×35 mm

Readability coating thickness [d] (µm): 0,1 µm; 1 µm

Measuring range coating thickness [d] (µm): 100 µm; 1250 µm
