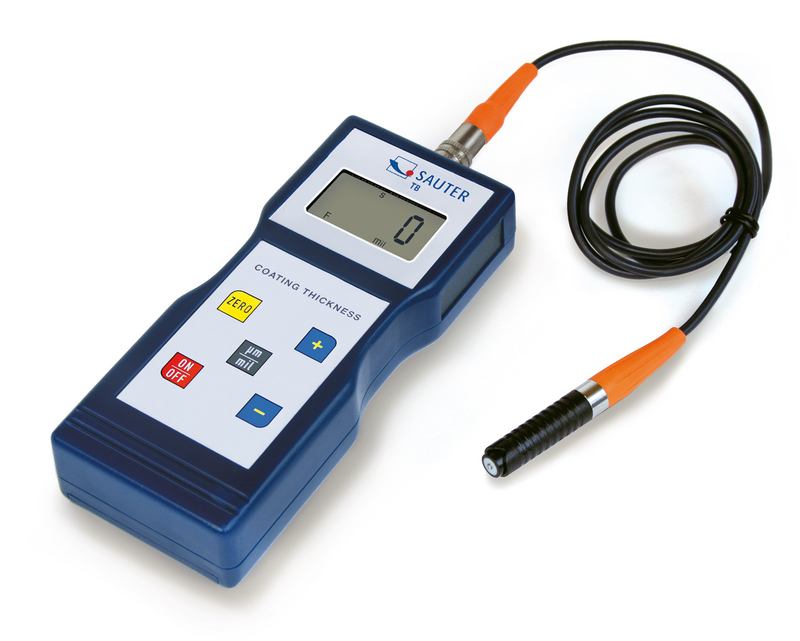

SAUTER TB 1000-0.1FN Coating thickness gauge (100 µm; 1000 µm)

Units: µm, inch (mil)

Battery: 4×1.5 V AA

Cable length: 1 m

Material housing: plastic

Tolerance (% of [Max]): 3%

Sensor placement position: external

Test object thickness coating: Non-magnetic coatings on iron, steel, Type F, Coatings on non-magnetic metals, type N

Coating thickness gauge sensor type: FE, NFE

Dimensions completely mounted (W×D×H): 161×69×32 mm

Readability coating thickness [d] (µm): 0,1 µm; 1 µm

Measuring range coating thickness [d] (µm): 100 µm; 1000 µm

Datasheet
