Measuring range
O2: 0~25%
CO (H2 comp.): 0~10,000 ppm
CO (with dilution): 100~50,000 ppm
CO2: 0~99.9%
NO (optional): 0~5000 ppm
Low NO (optional): 0~300 ppm
NO2 (optional): 0~1000 ppm
Low NO2 (optional): 0~100 ppm
NOx (optional): 0~7500 ppm
Low NOx (optional): 0~450 ppm
SO2 (optional): 0~5000 ppm
Low SO2 (optional): 0~100 ppm
CxHy (HC)(optional): 0~5%
H2S (optional): 0~500 ppm
Flue temperature: -20~+1250 °C
Air temperature: -20~+120 °C
Diffrential temperature: 0~1250 °C
Pressure: -200~+200 mbar
Excess air: 0 ~ 999%
Efficiency: 0 ~ 100% (Gross/ HHV (3))
Efficiency (condensation): 0 ~ 125% (Net/ LHV (4))
Stack Gas velocity: 0~99 m/s, 0~19,500 fpm
Dimensions: 28 x 11.2 x 5.5 cm
Weight: 825 g
Display: Color Touch Screen with Graphing; Size: 480 x 272 pixels
Keypad: 1 On-Off key
Material: ABS-PC
Protection: IP42
Connection: Wireless, USB
Power supply: Rechargeable battery, USB power supply; Li-Ion 5100 mA/h 3.6 V battery / Power supply voltage of the mains unit: 100-240 Vac, 50-60 Hz
Battery: Battery life > 8 h; Charging time: Fully charge: < 6.5 h; 50%: < 2.5 h
Memory: Internal memory up to 2000 tests
Temperature: from -5 to 45 °C,
Hygrometry: in non-condensing conditions (< 85% RH)
Maximum altitude: 2000 m
Languages: English, French, German, Spanish, Italian, Portuguese, Simplified Chinese
European Union Directives: 2014/53/EU (RED); 2015/863 EU (RoHS 3)
Regulations: EN 50379-1 and EN 50379-2; UNI 7129; UNI 11137; UNI 10389; UNI 10845; UL & cUL Certification; BS 7967:2015; BS EN 50543:2011; UNE 60670-10; ES.02173.ES

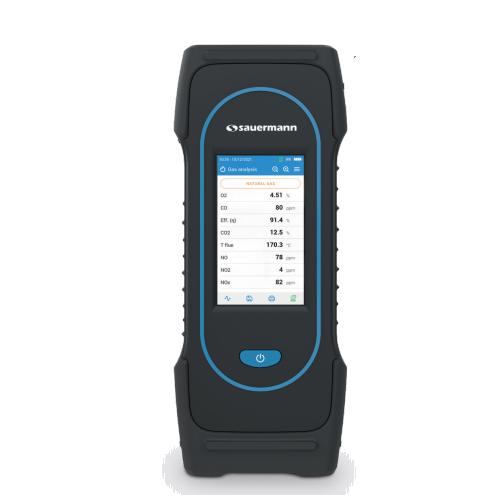

Si-CA 230 Gas Analyzer includes five gas sensors (O2, CO-H2, NO/NOx, NO2, SO2) upgradable to six gas sensors, 300 mm probe rated to 800 °C with 3 m dual hose, wireless connection to mobile app and remote printer (option), rubber holster, water trap with filter, charger with plug set, USB-C cable, quick start guide, calibration certificate and ABS hard plastic carrying case
Datasheet
