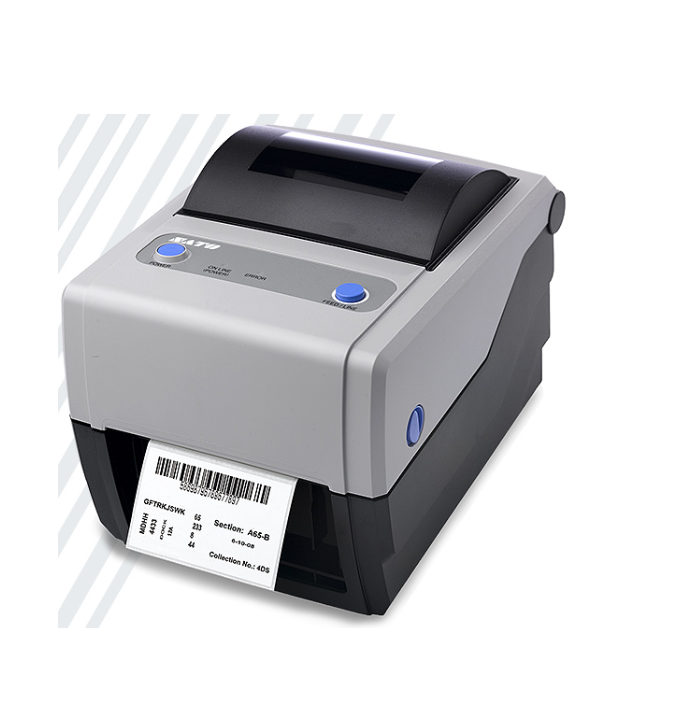

SATO CG4 Desktop Thermal Printer

- Resolution

CG408: 203dpi

CG412: 305 dpi

- Print speed: 100mm / sec

- CPU: 32 Bits RISC-CPU

- Memory: Flash ROM: 4MB, RAM: 8MB

- Ribbon:

Width: 110mm +/- 0.5mm

Length: Max 100mm

Paper core: 12.7mm

- Print area (WxP): 104x300mm

- Dimensions (WxDxH): 79 x 238 x 173mm

- Weight: TT model (about 1.7kg/3.5Ibs), DT model (about 1.9kg/4.2Ibs)

- Environment

0 ~ 35ºC / 30 ~ 80% RH (Operating)

-10 ~ 60ºC / 15 ~ 85% RH (Storage)

- Power source: AC Adapter - input voltage: AC100V-240V ± 10%

- Connection: USB + RS-232C model, USB + LAN model

* RS-232C can connect PC / SATO Keypad. Optional: External Wireless LAN

- Barcode:

- 1D: UPC-A / UPC-E, JAN / EAN, CODE39, CODE93, CODE128, GS1-128 (UCC / EAN128), CODABAR (NW-7), ITF, Industrial 2of5, Matrix 2of5

- 2D: QR code, MicroQR, PDF417

- EAN-13 Composite, EAN-8 Composite, UPC-A Composite, UPC-E Composite, GS1 DataBar Composite, GS1 DataBar Truncated Composite, GS1 DataBar Stacked Composite, GS1 DataBar Stacked OmniDirectional Composite, GS1 DataBar Limited Composite, GS1 DataBar Expanded Composite , GS1 DataBar Expanded Stacked Composite, GS1-128 Composite

- Optional accessories: Cutter, Dispenser, RFID HF Kit, Wireless LAN (802.11 b/g auto switching), Keypad, Unwinder, SATO
