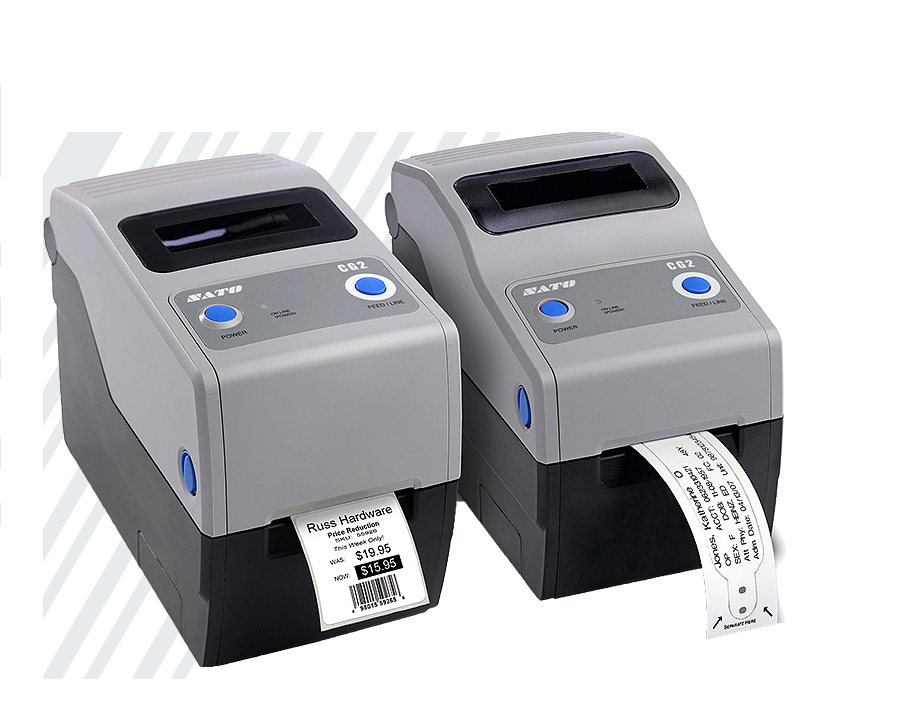

SATO CG2 Desktop Thermal Printer

- Resolution

CG208: 203dpi

CG212: 305 dpi

- Print speed: 100mm / sec

- CPU: 32 Bits RISC-CPU

- Memory: Flash ROM: 4MB, RAM: 8MB

- Ribbon:

Width: 59mm

Maximum outside diameter: 38mm

Paper core: 12.7mm

- Print area (WxP):

CG208: 56 x 600mm

CG212: 56 x 400mm

- Dimensions (WxDxH): 128 x 235 x 173mm

- Weight:

TT model (about 1.6kg / 3.5Ibs), DT model (about 1.5kg / 3.3Ibs)

- Environment

0 ~ 35ºC / 30 ~ 80% RH (Operating)

-10 ~ 60ºC / 15 ~ 85% RH (Storage)

- Power source: AC Adapter - input voltage: AC100V-240V ± 10%

- Connection: USB + RS-232C model, USB + LAN model

* RS-232C can connect PC / SATO Keypad. Optional: External Wireless LAN

- Barcode:

- 1D: UPC-A / UPC-E, JAN / EAN, CODE39, CODE93, CODE128, GS1-128 (UCC / EAN128), CODABAR (NW-7), ITF, Industrial 2of5, Matrix 2of5

- 2D: QR code, MicroQR, PDF417

- EAN-13 Composite, EAN-8 Composite, UPC-A Composite, UPC-E Composite, GS1 DataBar Composite, GS1 DataBar Truncated Composite, GS1 DataBar Stacked Composite, GS1 DataBar Stacked OmniDirectional Composite, GS1 DataBar Limited Composite, GS1 DataBar Expanded Composite , GS1 DataBar Expanded Stacked Composite, GS1-128 Composite

- Optional accessories: Cutting knife, measuring tube, SATO keyboard, Unwinder, NiceLabe
