DCV : 660m/ 6.6/ 66/ 600V
ACV : 660m/ 6.6/ 66/ 600V
DCA : 100A
ACA : 100A
Resistance : 660/ 6.6k/ 66k/ 660k/ 6.6M/ 66MOhm
Capacitance : 6.6n/ 66n/ 660n/ 6.6u/ 66u/ 660u/ 6.6m/ 66mF
Frequency : 660/ 6.6k/ 66kHz
Duty Cycle : 20~ 80%
Continuity : Buzzer sounds at below 3Ohm. Open voltage : approx. 1.2V
Diode Test : Open voltage : approx. 3V
Battery : LR03 x2
Size / Weight : H130xW75xD19.9mm / approx. 160g ( including Battery)
Clamp diameter : 10mm
Standard accessories included : Instruction manual
Features:
■Lightweight approx. 160g
■Maximum / Minimum value hold

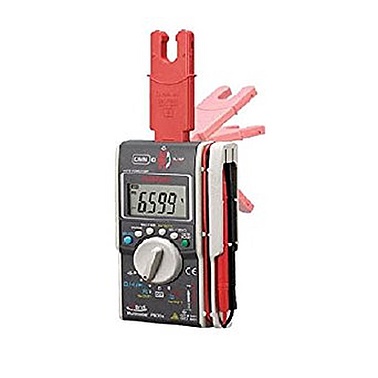

■Current measurement with thin U-shaped current sensor(7mm) at angles of 0 and 180 degrees
■AC and DC currents measurable up to 100A
■Data hold
■Measurement of relative value
■Auto power off
Option:
Carrying case : C-DG3a
Clip adapter : CL-13a, CL-14, CL-15a, CL-DG3a, TL-9IC
