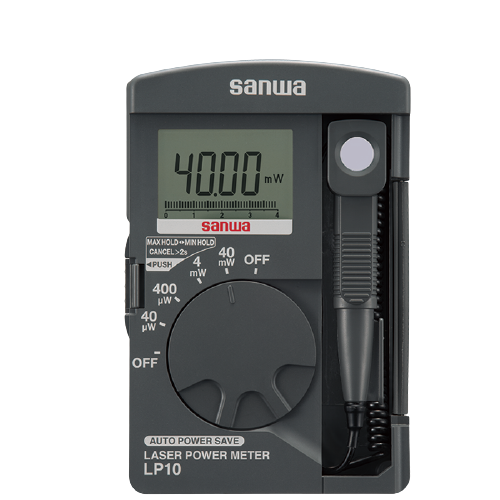

SANWA LP10 Laser Power Meter

Light sensor element: Si photodiode (Light sensor surface diameter Ø9mm) with diffusion sheet

Measurable wavelength range: 400 nm to 1100 nm

Directly-readable wavelength: 633 nm(He-Ne laser)

Other wavelengths should be converted using typical correction factor

Display:

- Digital display: 4039 full scale

- Bar graph display: 41-segment display

Sampling rate:

- Digital display: Approx. 3 times/sec.

- Bar graph display: Approx. 30 times/sec.

Ranges:

- 40 μW range: 0.01 μW to 40.39 μW

- 400 μW range: 0.1 μW to 403.9 μW

- 4 mW range: 0.001 mW to 4.039 mW

- 40 mW range: 0.01 mW to 40.39 mW

Measured object: CW laser, the modulated laser connot be measured accurately

Power supply: LR44 1.5V×2

Size/Mass: 117(H)×76(W)×18(D)mm / approx. 120 grams

Light sensor probe: 84(H)×16(W)×10(D) mm

Sensor cord length: Aprox. 0.5 m when extended

Accessories: Instruction manual x 1
