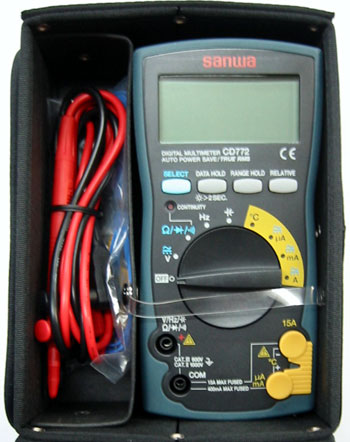

SANWA CD772 Digital Multimeter

DCV : 400m/ 4/ 40/ 400/ 1000V
ACV : 4/ 40/ 400/ 1000V
DCA : 400u/ 4000u/ 40m/ 400m/ 4/ 15A
ACA : 400u/ 4000u/ 40m/ 400m/ 4/ 15A
Resistance : 400/ 4k/ 40k/ 400k/ 4M/ 40MOhm
Capacitance : 50n/ 500n/ 5u/ 50u/ 100uF
Frequency : 5/ 50/ 500/ 5k/ 50k/ 100kHz
Temperature : -20~ 300C
Continuity : Buzzer sounds and LED lights up at between 0Ohm and 85Ohm ( ± 45Ohm) . Open voltage : approx. 0.4V
Diode Test : Open voltage : approx. 1.5V

Bandwidth : 45~ 500Hz ( 4V range) , 45~ 1kHz ( 40V range and above)
Fuse : 0.5A/ 1000V 30kA dia.6.35x32mm, 16A/ 1000V 30kA dia.10x38mm
Battery : R6P x2
Size / Weight : H166xW82xD44mm / approx. 360g
Standard accessories included : Test Lead ( TL-25) , Thermocouple K ype ( K-250CD) , Instruction manual
