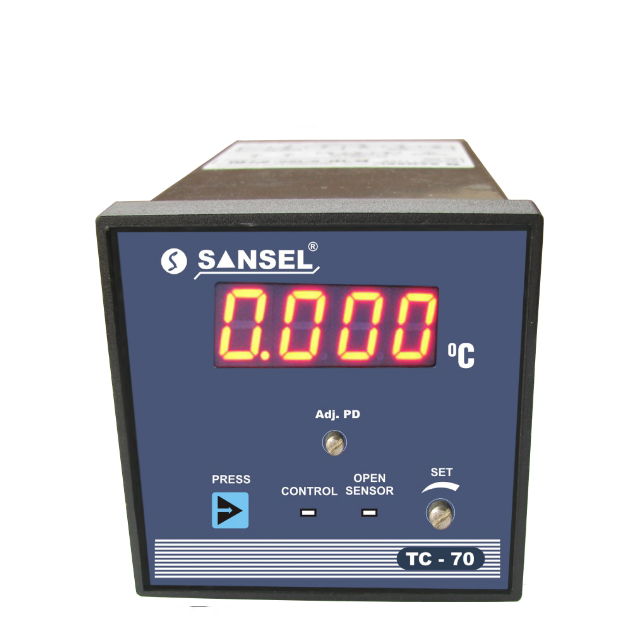

Display: 3 ½ Display 0.5” Red seven segment LED
Resolution: RTD 0.1/1°C (anyone) (or) TC- 1°C
Range: PT 100: -199.9 ~ +199.9°C (or) -200 ~ +400°C
TC-J-0~400°C; TC-K-0~1200°C
Input: PT 100/J/K (factory preselectable)
Control mode: ON/OFF or PD (factory preselectable)
Control action: Heat or Cool (factory preselectable)
Relay output: 1 No, 1NC 5A Rated max
SSR output: 12VDC ±10% (50mA max)
Working temperature: 0~50°C
Power supply: 230AC/50HZ
Overall dimension: 72x72x110mm
Cut out dimension: 68x68mm
Weight: 494gms
