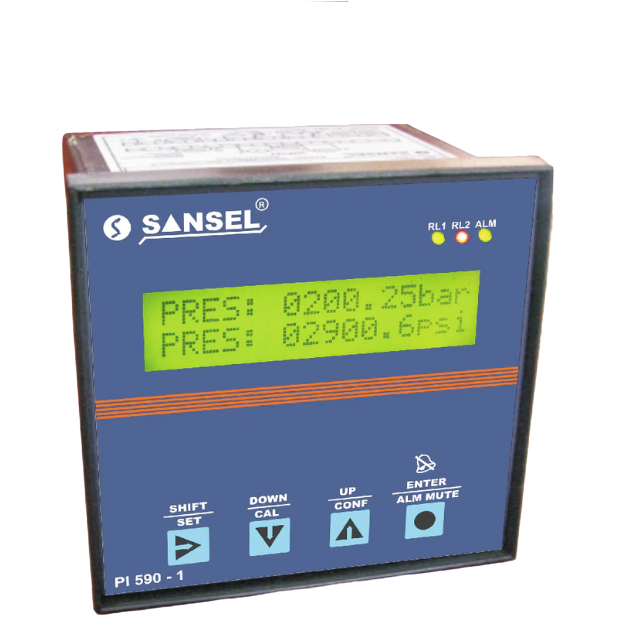

Sansel PI 590-1 Process Indicator (5 ½ Digit; LCD display)

Display: 16 character x 2 Line LCD display

Inputs: mA/ volt (selectable)

Input range: 0~20mA DC/ 0~10VDC (scalable)

Display range: -19999~40000 (Programmable)

Resolution: 0.00001/ 0.0001/ 0.001/ 0.01/ 0.1/ 1 (Selectable)

Accuracy: ±0.1% at 25ºC

Relay output (optional): 2 Relay with Four Relay Status Selection

Re Transmission (optional): Opto-Isolated Analog Output 4 ~ 20 mA or 0 ~ 10V DC

Communication: RS 485 (2 wire)

Comm. Protocol: MODBUS RTU Protocol

Sensor supply (external): 24VDC ±10% at 100 mA

Operating environment: 0~50ºC/ 20~95%RH Non condensing

Power supply: 90~270VAC/DC; 50/60Hz

Overall dimension: 96(H) X 96(W) X 65(D) mm

Cut out dimension: 90(H) X 90(W) mm

Housing panel mountable ABC plastic

Weight: ≈ 200 grams
