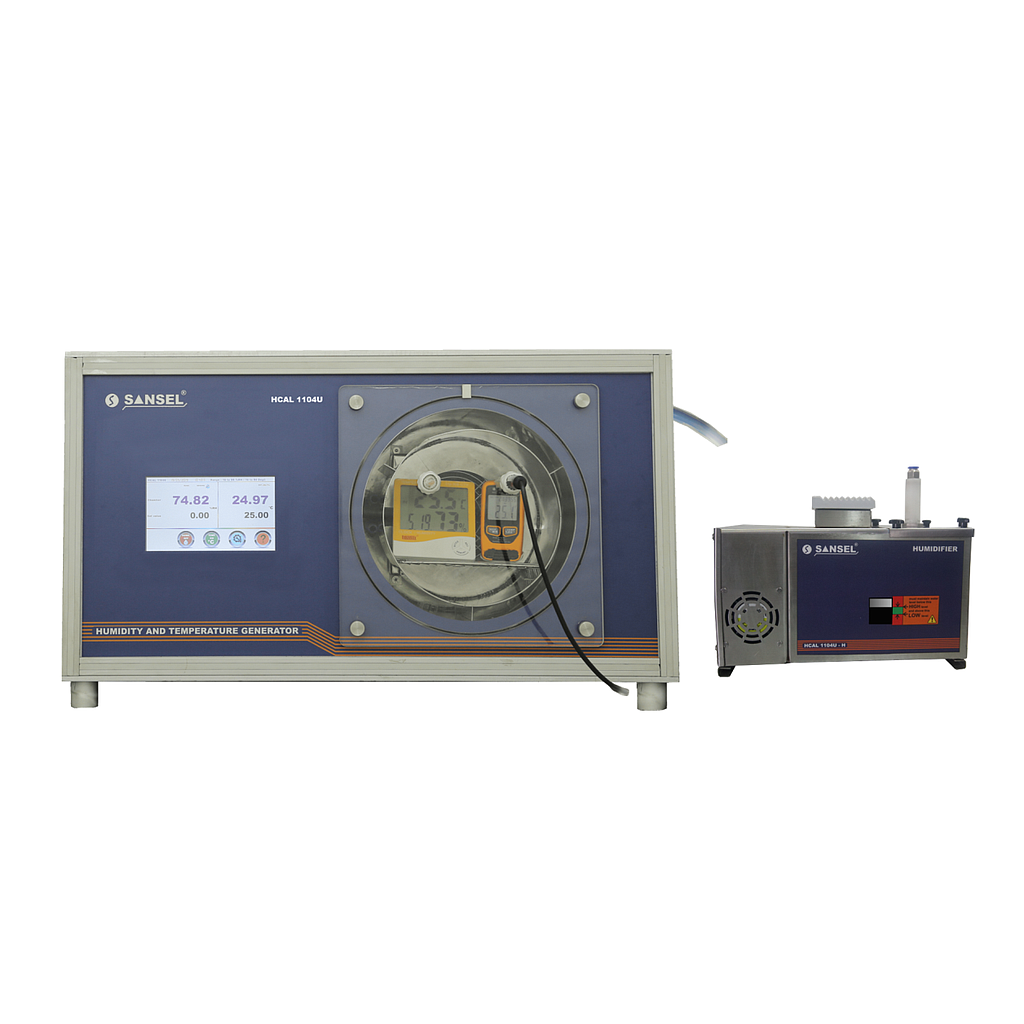

Sansel HCAL 1104U Precision Humidity and Temperature Generater

Control Range: 10 to 50°C / 5 to 95 % RH (*Extended range on request 5 to 60°C / 3 to 97 % RH)

Resolution: 0.01 °C / %RH

Stability: Better than ± 0.05 °C / 0.2 % RH (@ 25°C chamber temperature)

Uniformity: ± 0.2 °C / 0.3 % RH (@ 25°C chamber temperature)

Display: 7” True colour TFT LCD Display with Touch screen

Test sensor insert port: Inter changeable Acrylic door Provided on front side of the chamber with pg19 gland x 3nos

External Humidifier Water tank capacity: 6 liters (approx.)

Humidifier Liquid: Distilled water

Humidifying Time: 2 %RH / sec (50 to 90 % RH)

Dehumidifying Time: 6 %RH / sec (50 to 10 % RH)

Test chamber area: 230mm DIA x 170mm D(Approx)

Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)

Power Consumption: 1000 VA

Construction: Inner chamber SS 310 / outer MS powder coating

Overall Dimension: 436mm L x 676mm W x 368mm H (Approx)

Instrument Weight: 44 kg (without Accessories) (Approx.)
