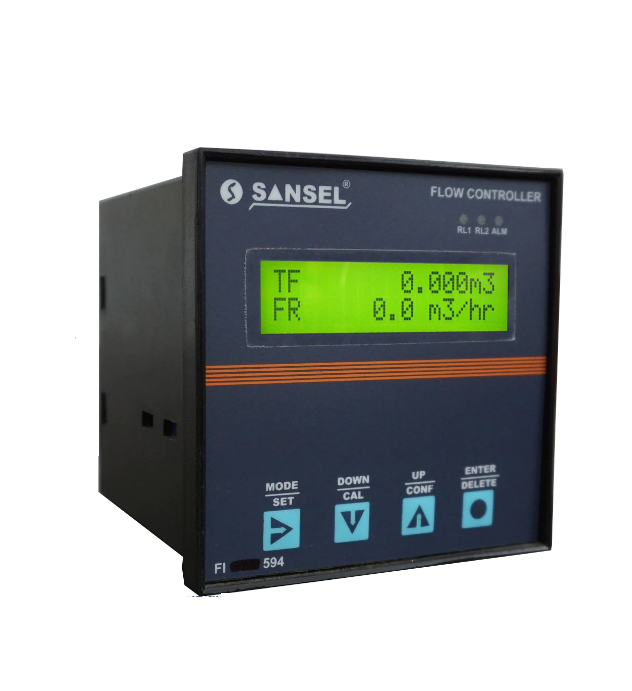

Sansel FI 594 Flow Indicator/Totalizer (±0.1%FS at 25ºC)

Input: Pulse

Display: 16 Character X 2 Line LCD Display

Display modes: Flow rate (FR), Total Flow (TF) & Batch Total (BT)

Display range: 0~99999 (5 Digits) for FR, 0~99999999 (8 Digits) for TF

FR resolution: 1/ 0.1/ 0.01 (any One Selectable)

TF resolution: 1/ 0.1/ 0.01/ 0.001 (any One Selectable)

Units: m³, Liter, Gallons (Selectable)

Flow Rate Time Base: Seconds, Minutes, Hours (Selectable)

Password protection: Provided for User & Supervisor separately

(Optional) Relay output: 2 Relay Output

(Optional) Retransmission: Opto-isolated 4~20mA or 0~10VDC (any one factory Presettable)

Output:

- (Optional) Communication RS 485 (2 wire) / MODBUS RTU / RS 232 (any one factory Presettable)

- (Optional) PC software Monitoring, Data logging, Report & Graph

Sensor supply: 5 or 12 VDC/ 100mA Max.

Accuracy: at 25ºC ±0.1% of FS

Operating environment: 0~50ºC/ 20~95%RH Non Condensing

Power supply: 90~270VAC, 50/60Hz
