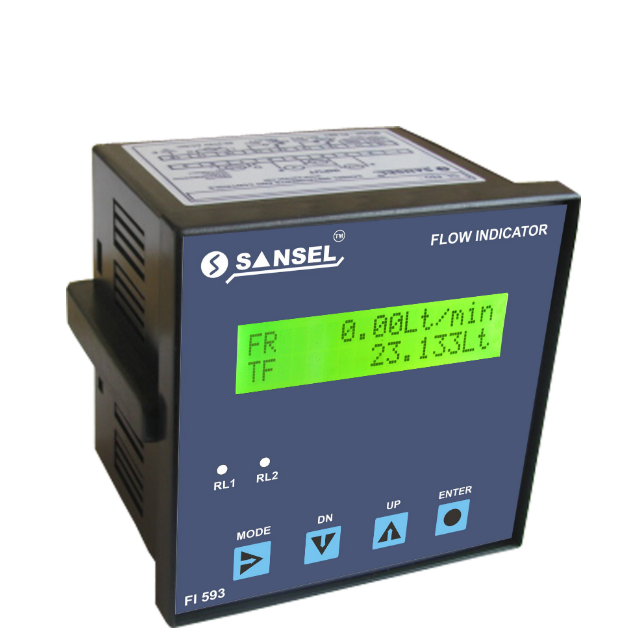

Sansel FI 593 Flow Indicator/Totalizer (±0.1%FS at 25ºC)

Input (Factory settable): 0~20mADC/ 0~10VDC (any One)

Display: 16 Character X 2 Line LCD Display

Display modes: Flow Rate (FR) & Total Flow (TF)

Display range: 0~9999(4 Digits) for FR, 0~99999999 (8 Digits) for TF

Voltage drop: 1V Maximum (Applicable only for current input models)

Input impedance: 18K Ohms (Applicable only for voltage input models)

Resolution: 1/ 0.1/ 0.01 (any One User Selectable)

Accuracy: at 25ºC ±0.1% of FS

Relay output (optional): 2 relay (5A rated) with individual relay assignment setting

Operating environment: 0~60ºC/ 5~95%RH (Non-Condensing)

Conversion modes: Linear, Square root (User selectable)

Units: m³, liter, gallons (User selectable)

Flow rate time base: seconds, minutes, hours (User Selectable)

Sensor supply: 24VDC/100mA Max.

Power supply: 90~270VAC

Frequency: 50/60Hz
