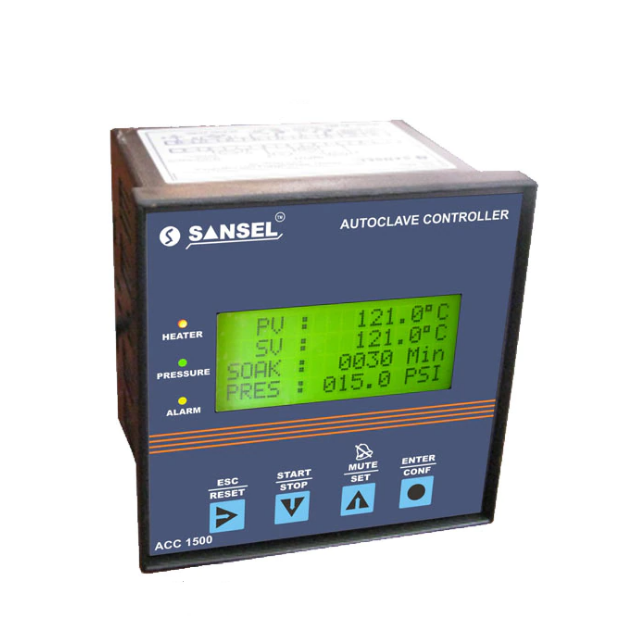

Sansel Acc 1500 Autoclave Controller (0~200°C; ±0.1%FS)

Display: 16 Character x4 Line LCD

Password access: Provided for Configuration & User settings

Heater output: 1 Relay (15A max. load)

Pressure (auto steam): 1 Relay (5A max. load)

Output: Alarm output inbuild buzzer with 12VDC O/P (50 mA max. load)

Water level sensor: Provided for High level

Door open sensor: Provided Limit switch input (NO)

Temp. sensor: RTD-PT 100 (3 wire)

Temp. range: 0~200°C

Temp. Accuracy: ±0.1% of FS

Soak timer: 0~9999 mins / secs (user selectable)

Time count: Up/Down (user selectable) direction

Pressure: Auto calculating from temperature reading

Pressure range: 0~35 PSI/ 0~250kPa (user selectable)

Mounting: Panel mounting

Overall dimension: 96 x 96 x 85(W x H x D) mm

Cut out dimension: 90 x 90(W x H) mm

Operating environment: 0~50°C / 20~95%RH (non condensing)

Weight: ≈1kg
