Inner Diameter:13 mm
Length: 10m
Weight: 22.9 kg
Maximum Working Pressure:1.4 MPa
Size: 540x516x205 mm

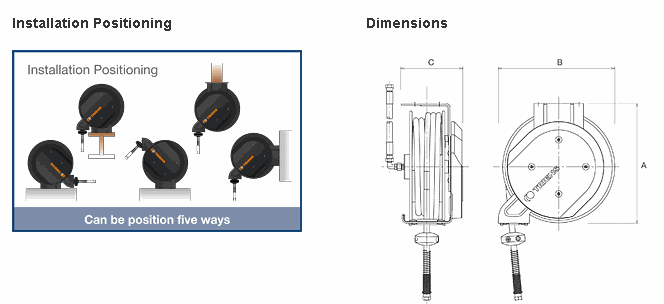

Model | Hose | Maximum | Inlet Hose | Dimensions | Body | ||||||
Hose | Connection | Inner Diameter | Length | Connection | Length | A | B | C | |||
ZSA-310 | PVC | Union G 3/8 Female | 8.0 | 10.0 | 1.4 | Union G 3/8 Female | 1.0 | 392 | 380 | 202 | 14.4 |
ZSA-408 | PVC | Union G 1/2 Female | 13.0 | 10.0 | 1.4 | Union G 1/2 Female | 1.0 | 392 | 380 | 202 | 16.0 |
ZLA-415 | PVC | Union G 1/2 Female | 13.0 | 10.0 | 1.4 | Union G 1/2 Female | 1.0 | 540 | 516 | 205 | 22.9 |
ZLA-420 | PVC | Union G 1/2 Female | 13.0 | 10.0 | 1.4 | Union G 1/2 Female | 1.0 | 540 | 516 | 205 | 23.9 |
• Read the manual thoroughly and use it properly.
• The actual product color may differ.
• Product specifications are subject to change for improvements without notice.
• These products are for indoor use only.
