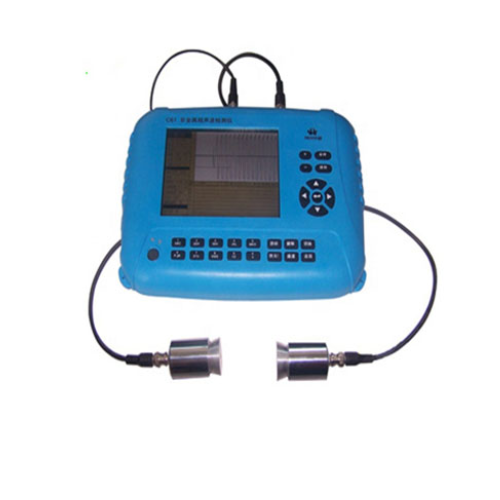

Main control unit: high-performance embedded computer
Input method: keyboard
Interface: USB
Receive channel: two
Transmission mode: continuous and external
Receive sensitivity: <=30uv
Amplifier bandwidth: 5kHz to 500kHz
Sound time accuracy: 0.05us
Display: 640*480 high brightness TFT panel
Storage: 1G(interior) 1G(U-Disk)
Max sample data length: 64k
Trigger voltage(V): 65,125,250,500,1000(selectable)
Amplifier gain: 82dB
Sample periods: 0.05us to 6.4us,8grade adjustable
Amplifier resolution: 0.39%
Power: interior lithium battery works more than 6 hours
External lithium battery works more than 6 hours (optional)
DC 12V interface
AC 100V-240V,50/60Hz
Size: 260*185*60mm
Weight: 1.75kg(including the battery)
Temperature: -10℃-+40℃
