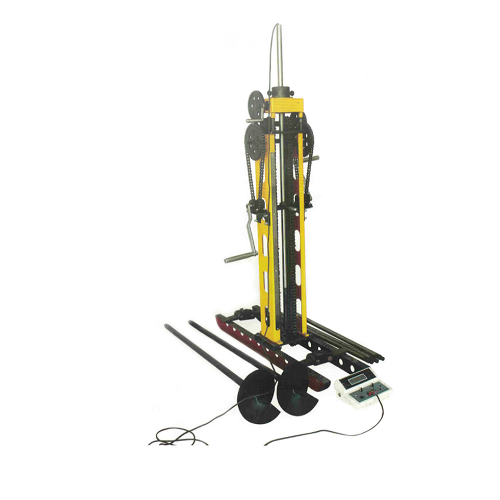

Samyon CLD-3 Type Static Probe - cross Plate Cutting Dual-purpose Instrument (33KN)

Rated penetration force: 30KN (3 tons)

Maximum penetration: 33KN (3.3 tons)

Through the journey: 1m

Penetration speed: 0.9 ~ 1.2 m/min (50-70 rpm)

Pick-up speed: slow speed and penetration speed, fast up to 4 m/min

Probe: 1m long, 30 pieces. 28*5-6 thick, high quality alloy steel seamless tube

Ground anchor: diameter 220 ~ 260 mm, single leaf anchor, 2 pieces

Cross plate cutting range:0~128 KPa

Static probe: strain gauge single bridge 10cm or double bridge 10cm

Cross-plate probe: strain gauge , head 50*100*2 (mm) or 75*150*3 (mm)

Chain: drive chain 10A-1, 68 sections 2

Drive chain 12A-1, 148 section 2

Host weight: =<60 kg
