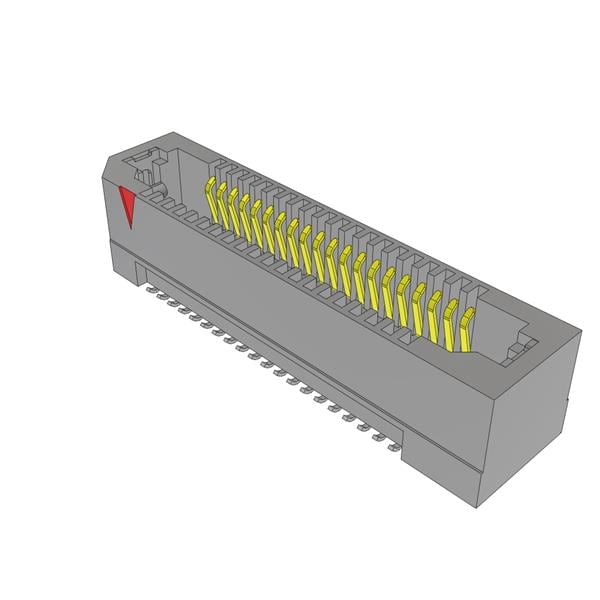

Pitch: 0.8 mm (0.031 in)
Unit Weight: 1.717 g
Stack Height: 7 mm, 8 mm, 10 mm, 13 mm, 14 mm
Mounting Angle: Vertical
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Maximum Data Rate: 56 Gbps
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 40 Position
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
