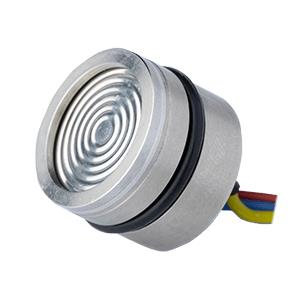

Same Sky (formerly CUI Devices) PS01-G250KP-3W Pressure Switches pressure sensor, ratiometric, 250kPa, gauge, 5V excitation, 3 wire

Height: 14 mm

Accuracy: 0.5 %

Diameter: 19 mm

Output Type: Analog

REACH - SVHC: Details

Pressure Port: No Port

Pressure Type: Gauge

Output Voltage: 500 mV to 4.5 V

Operating Pressure: 250 kPa

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Operating Supply Voltage: 4.5 V to 5.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
