Color: Black
Unit Weight: 2.060 g

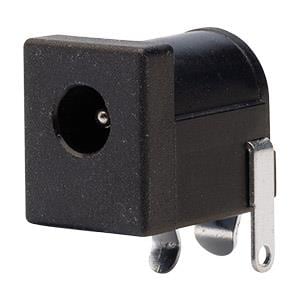

Connector Type: Jack
Contact Gender: Pin (Male)
Current Rating: 2 A
Mounting Angle: Right Angle
Mounting Style: Through Hole
Voltage Rating: 24 VDC
Contact Plating: Nickel
Contact Material: Copper
Housing Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Lug
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 1.3 mm
Outside Contact Diameter: 3.8 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
