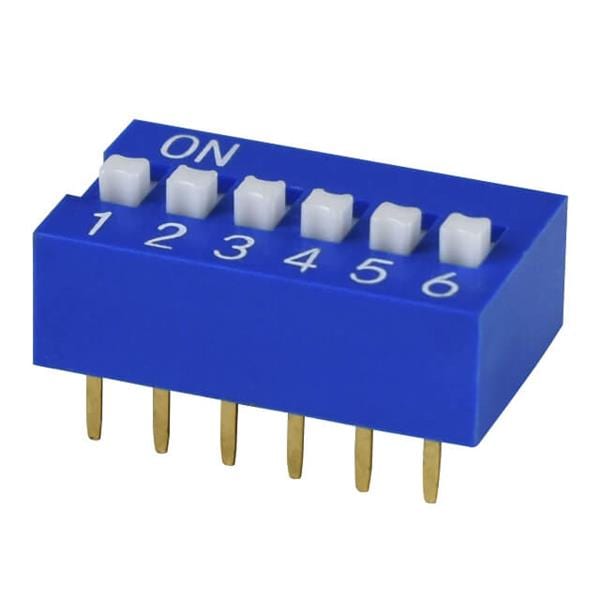

Same Sky (formerly CUI Devices) DS01C-254-S-06BE DIP Switches DIP Switch, SPST, 2.54 pitch, raised actuator, covex bottom, Short pin, 6 position, Blue
ModelDS01C-254-S-06BE
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 2000 Cycle
Actuator: Raised
Illuminated: Non-Illuminated
Switch Type: DIP
Contact Form: SPST
Actuator Style: Slide
Current Rating: 25 mA
Mounting Angle: Straight
Mounting Style: PCB Mount
Contact Plating: Gold
Contact Material: Copper Alloy
Actuator Material: Polybutylene Terephthalate (PBT)
Termination Style: Solder Pin
Voltage Rating DC: 24 VDC
Number of Positions: 6 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
