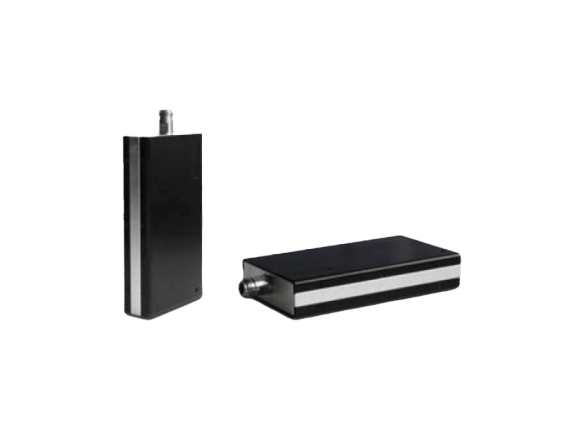

Saluki SVA102 RF Signal Generator (10MHz - 6GHz)

Frequency Range 10 MHz - 6 GHz

Frequency Stability ±1 ppm

Frequency Resolution 1 Hz

Output Power Range -110 dBm - +10 dBm

Output Power Resolution 0.1 dB

Output Power Accuracy ±0.5 dB

Harmonics ≤-30 dBc; Non-harmonic <-55 dBc

Phase Noise ≤100 dBc / Hz @ 10 KHz

SWR ≤1.5:1

Vector Modulation Signal

BPSK、QPSK、OQPSK、8PSK、MSK、

FSK、16QAM、32QAM、64QAM

Telecommunication Standard

GSM / EDGE / CDMA / TD-SCDMA / WCDMA /

CDMA2k / TD-LTE / FDD-LTE / NB-IoT / LoRa

EVM ≤3%rms

Modulation Mode

I / Q, pulsewidth

I / Q modulation bandwidth: 20MHz

I / Q modulation depth: 4G bits

Pulsewidth: 100 ns - 1s, repetition rate: 1 Hz - 10 MHz

Download datasheet
