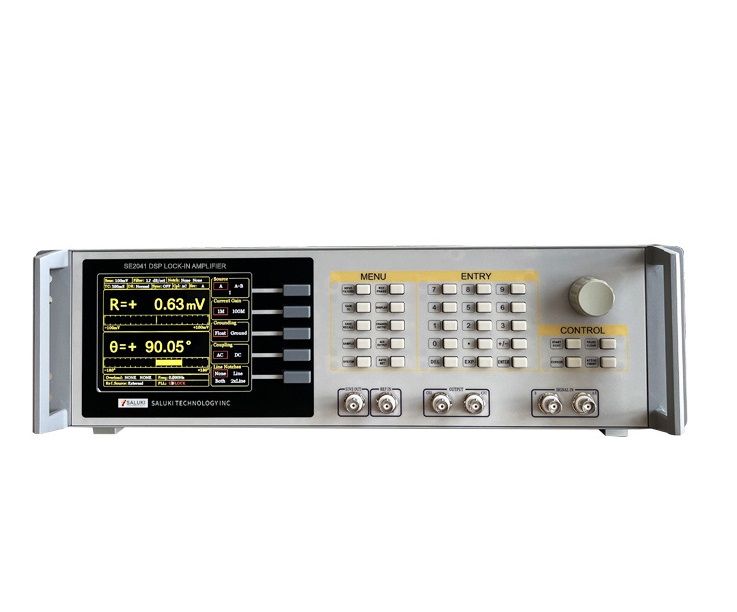

SALUKI SE2041 Lock-In Amplifier (1 mHz to 30 MHz, 1 nV to 1V)

1. Signal Channel

Voltage Input Mode: Single-ended or Differential

Full-scale Sensitivity: 1 nV to 1V in a 1-2-5 sequence

Current Input: 106 or 108 V/A

Impedance: Voltage: 50 Ω// 5 pF, 10 MΩ// 5 pF, AC or DC coupled

C.M.R.R: >70 dB ~ 100 Hz, >50 dB ~ 100 kHz

Dynamic Reserve: > 120 dB

Gain Accuracy: 0.5% typ, 3% max

Noise:

6 nV/√Hz at 99.99 KHz

14 nV/√Hz at 997 KHz

2. Reference Channel

Input:

Frequency range: 1 mHz to 30 MHz

Reference input: TTL or Sine

Input impedance: 1 MΩ//5 pF

TTL level: VINH>3 V , VINL<0.5 V

Sine reference level: 0.2 V < VPP< 10 V, Freq. > 1 Hz

Phase:

Resolution: 0.001 deg

Absolute phase error: < 1 deg typ, 5 deg max

Relative phase error: < 1 mdeg

Orthogonality: 90° ± 0.001°

Phase noise: (Internal ref.) Synthesized, <0.0001°rms at 1 kHz; (External ref.) 0.005°rms at 1 kHz (100 ms time constant, 12 dB/oct)

Drift: <0.01°/℃ below 100 kHz, <0.1°/℃ above 100 kHz

Harmonic Detection: 2F, 3F, …nF to 30 MHz (n<32767)

Acquisition Time:

Internal ref.: instantaneous acquisition

External ref.: (2 cycles + 5 ms) or 40 ms, whichever is larger

3. Demodulator

Stability:

Digital output: no zero drift on all setting

Display: no zero drift on all setting

Analog output: <50 ppm/℃ for all dynamic reserve settings

Harmonic Rejection: -90 dB

Time Constant: 30 ns ~ 4.4 ks (6, 12, 18, 24, 30, 36, 42, 48 dB/oct rolloff)

4. Internal Oscillator

Frequency

Range: 1 mHz to 30 MHz

Accuracy: 2 ppm + 10 µHz

Resolution: 1 mHz

Distortion:

-80 dBc (f < 100 kHz)

-60 dBc (f > 1 MHz)

Amplitude: 1µV ~ 1 Vrms

Accuracy: 0.5% typ, 2% max

Stability: 50 ppm/℃

Output: 5V TTL/CMOS, 50Ω output impedance

5. Interface: USB2.0, RS-232(DB-9) and 1000Mbps Enthernet

6. Inputs & Outputs:

AUX Inputs

Function: 4 channel inputs

Voltage: ±10 V full scale, 0.1 mV resolution

Impedance: 1 MΩ

AUX/CH Outputs

Function: 4 channel inputs

Voltage: ±10 V full scale, 0.1 mV resolution

Impedance: 1 MΩ

7. Display

Screen: 5.6 inch, 640×480 TFT

Screen Format: Single or dual display

Display Types: Numerical form, bar graph

8. General

Power Requirement:

Voltage: 220 – 240 VAC, 100 – 120 VAC (optional)

Frequency: 50/60 Hz

Power: 50 W typ, 70W max

Dimension:

448 (W) × 148 (H) × 513 (D) mm (with feet)

448 (W) × 133 (H) × 513 (D) mm (without feet)

Weight: 12 kg

Datasheet
