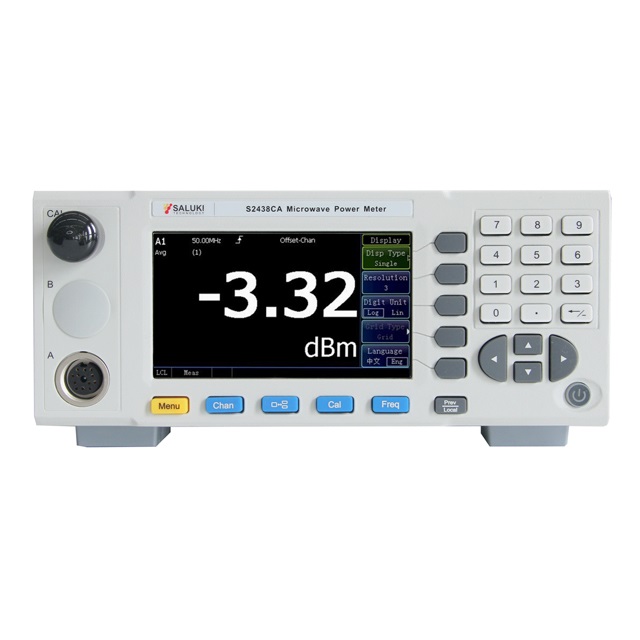

SALUKI S2438PB Microwave Power Meter (500GHz, 2CH)

Frequency Range: 9kHz to 500GHz

Channel: Dual

CW Power Range: -70dBm to +50dBm

Pulse Power Range: -40dBm to +20dBm

Max. Display Resolution:

Log: 0.001dB

Line: 0.0001

Relative Offset Range: ± 100dB

Pulse Rise Time: ≤ 13ns

Video Bandwidth: ≥ 30MHz

Max. Pulse Repetition Frequency: 10MHz

Min. Pulse Width: 50ns

Time Base: 2ns/div ~ 3600s/div

Internal Trigger Level Range: -20dBm to +20dBm

Calibration Source Frequency: 50MHz ± 1MHz

Calibration Source Power: 1.000mW (1±1.0%)

Output Port: Type-N (female)

Uncertainty: ± 0.04dB

Display: 4.3 inch color LCD

Power Consumption: 50W

Power Supply: 100-240VAC, 50-60Hz

Dimension: 220(W) × 100(H) × 350(D) mm

Weight: 5kg
