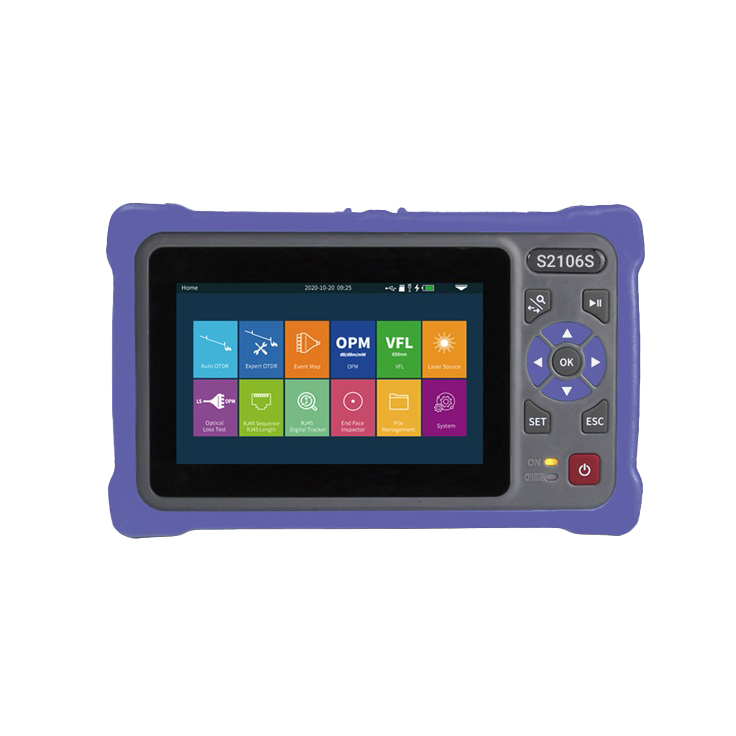

1. OTDR
Wavelength: 1550±20 nm (live test)
Dynamic Range: 24 dB
Fiber Type: G.652 SM
Event Blind Zone: 2.5m
Attenuation Blind Zone: 8m
Display Resolution: 0.01dB
Test Range: 0.5km/1km/2km/4km/8km/16km/32km/64km/100km
Pulse Width: 3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1µs/2µs/3µs/5µs/8µs/10µs/20µs
Sampling Point: 16k – 128k
Sampling Resolution: 0.05m – 8m
Loss Accuracy: ±0.05dB/dB
Loss Resolution: 0.001dB
Reflection Accuracy:± 3dB
IOR: 1.0 – 2.0
Loss Analysis: 4-point method / 5-point method
File Format: SOR (standard format)
Optical Interface:FC/UPC (Interchangeable SC, ST)
Laser Safety Level: Class II
Refresh Rate: 3Hz (typ.)
Multitasking Function: Support
2. OPM
Wavelength Range: 800nm – 1700nm
Measurement Range: -50dBm to +26dBm or -70dBm to +10dBm
Uncertainty: ± 5%
Resolution : ≤0.01dB
Connector: Universal joint FC/SC/ST
Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650 nm
3. LS
Wavelength: Consistent with OTDR output wavelength
Output Power: ≥ -5dBm
Stability: CW, ±0.5dB/15min
Laser Source: FP-LD
Connector: FC/UPC (Interchangeable SC, ST
Output Mode: CW/270Hz/330Hz/1kHz/2kHz
4. VFL
Wavelength: 650nm ± 20nm
Output Power: ≥ 10mW (standard)
Mode: CW/1Hz/2Hz
Connector: FC/UPC (Interchangeable SC, ST)
Laser Safety Level: Class III
5. RJ45 Cable Tracker
Mode: Digital tracking
Test Distance: ≥ 300m
6. Optical Loss Test
Wavelength: Consistent with LS output wavelength
Test Range: Consistent with OPM
Insertion Loss Test: Support
7. RJ45 Cable Length
Test Distance: ≥ 300m
Display: 4.3 inch 800x480 IPS TFT-LCD, Multi touch capacitive touch screen
Data Storage: Internal: 8GB (≥200,000 data)
Data Interface: USB Type C
Battery: 3.7V / 4000mAh Lithium battery, continuous working time > 12 hours
Power Supply: AC/DC adapter: Input 100V-240V, 50/60Hz, 0.6A, Output 5V, 2A
Dimension: 173 (W) × 109 (H) × 45 (D) mm
Weight: ≤0.5kg (including battery)
