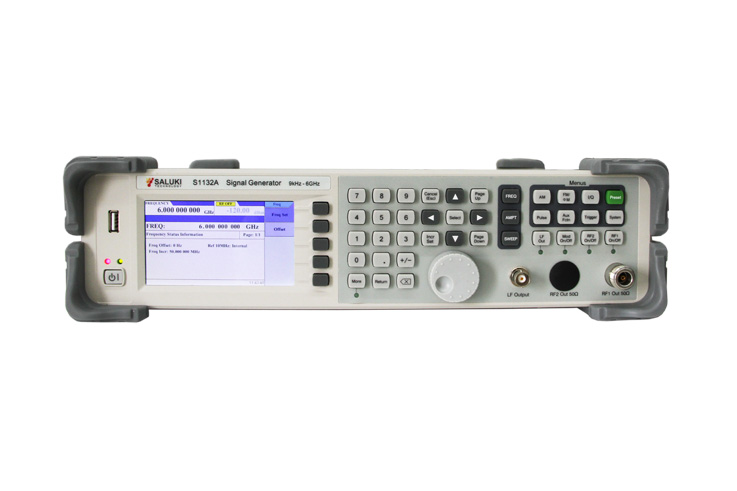

SALUKI S1132A Multi-standard Signal Generator (9 kHz ~ 6 GHz)

Frequency Range: 9 kHz to 6 GHz

Frequency Resolution: 0.23 Hz

Internal Reference Frequency: 10 MHz

Temperature Stability: ±0.5ppm (option: ±5ppb)

Internal Reference Output: 10 MHz, +2 dBm (typ.)

Harmonic: ≤ -40dBc (typ.)

SSB Phase Noise: Carrier frequency offset @f=1GHz: -100 dBc / Hz @ 10kHz offset

Output Power Range:

9kHz – 50kHz: -120dBm to 0dBm

50kHz – 6GHz: -120dBm to +10dBm

Output Power Resolution: 0.1 dB

Sweep Mode: Step sweep, List sweep

Trigger Mode: Auto, External

Analog Modulation: AM/FM/ФM: support internal/ external modulation source

Pulse Modulation:

Pulse Period: 200ns – 160s

Pulse Width: 100ns – 85s

Linear Frequency Modulation (LFM):

Scan Range: 20MHz (max.)

Scan Speed: 20ns – 20ms

Frequency Upper Conversion:

Input IF Frequency Range: 200MHz ± 10MHz

Input IF Power Range: -50dBm to 0dBm
