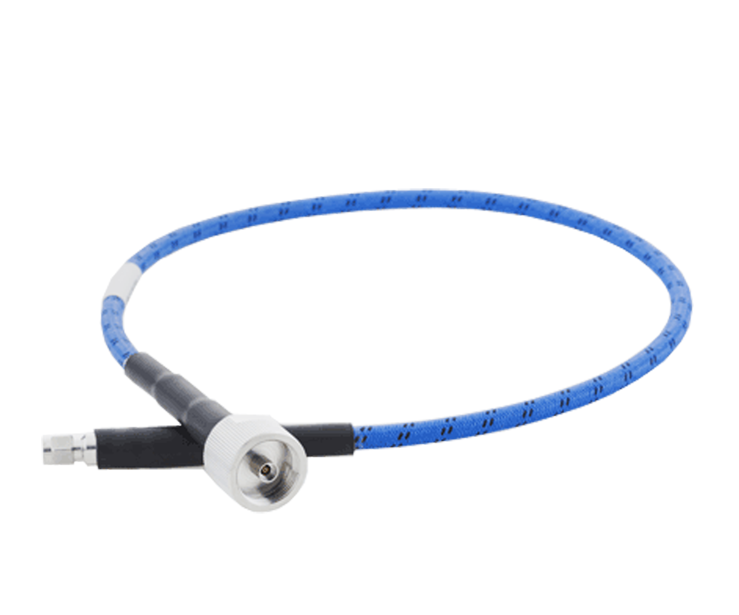

Frequency Range: DC – 50 GHz
VNA End: NMD 2.4mm female
DUT End: 2.4mm male
VSWR: 1.35
Insertion Loss: < 2.65 dB
Phase Stability: < ±5.5°
Amplitude Stability: < ± 0.1 dB
Shielding Effectivity: > 100 dB
Cruch Resistance: > 80 kgf/cm
Length: 63 cm (24.8 inch)
Impedance: 50 Ω
Outer Diameter: 10.3 mm
Minimum Bend Radius: 50 mm
Connector Materials
Body: Stainless steel, Passivated
Center conductor: Au-plated beryllium Copper
Cable Materials
Center conductor: Ag-plated copper
Dielectric: PTFE
Inner braid: Ag-plated copper tape
Outer conductor: Ag-plated copper tape
