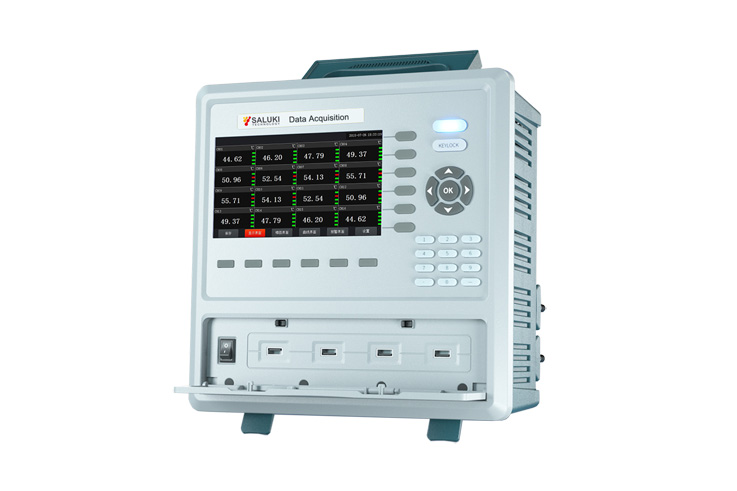

SALUKI DAQ9000 Temperature Data Acquisition (7 inch, 70MB, 8-slot mainframes)

Input Signals

Thermocouple: K, R, B, N, E, T, J, S, WRE5-26, WRE3-25

Thermal resistance: pt1000, pt100, cu50

Number of Channels: 1-200

Power Consumption: ≤ 25 VA

Storage Interval: Self-setting from 1s to 19999s

Internal Memory: 70MB, or optional 2GB

Acquisition Mode: Cyclic

Alarm: Upper & Uppermost & Lower & Lowermost limit, 4 alarms per channel

Relay: 8-channel NO&NC relay 250VAC 5A

Power Supply: AC 85V-265V, DC 12V-25V

Distribution Output: 1-channel 24VDC (optional multi-channel 24V or 5VDC output)

Communication: Standard Ethernet, RS485, RS232 (optional USB/4G/WIFI wireless)

Standard Modbus TCP/RTU protocol

Temperature: Operating: -20°C to +50°C

Humidity: Operating: 0 – 90% RH

Dimension: 288 × 288 × 200 mm
