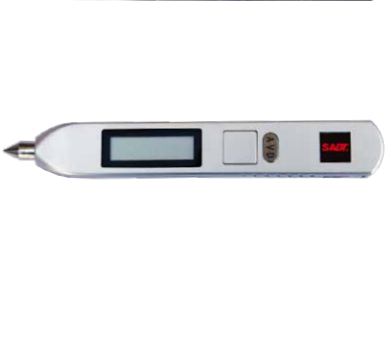

SADT TV260 Vibaration pen (0.1-199.9mm/s;Standard package)

Parameters: Acceleration, Velocity, Displacement

Testing range:

Acceleration: 0.1-199.9m/s²(peak)

Velocity: 0.1-199.9 mm/s (RMS)

Displacement: 0.01-1.999 mm (peak-peak)

Frequency range:

Velocity: 10Hz~1KHz

Displacement: 10Hz~500Hz Acceleration: 10Hz~1KHz

Tolerance: ±5%±2

Display: 3½digits LCD

Power: Two button batteries(LR44 or SR44)

Battery capacity: Approx. 4.5 hours working continuously

Operating temperature: 0°~40°C

Humidity: <85%

Dimension (mm): 150×22×18

Weight (g): 55 (including batteries)
