Accuracy: Cx: ±(reading×1%+1pF) Tgδ: ±(reading×1%+0.00040)
Anti-interference: Variable frequency anti-interference, the above accuracy can be reached even under 200% interference.
Capacitance range: Internal HV: 3pF~60000pF/12kV 60pF~1.2μF/0.5kV External HV: 3pF~1.5μF/12kV 60pF~30μF/0.5kV Best resolution: 0.001pF, 4 valid digits.
Tgδ range: Unlimited, 0.001% resolution, automatic identification for capacitance, inductance and resistance of the tested articles.
Test current range: 10μA~5A
Internal HV: Set voltage range: 0.5~10kV Maximum output current: 200mA Buck-boost method: continuous smooth regulation Accuracy: ±(1.5% reading+10V) Voltage resolution: 1V
Test frequency: 45~65Hz integer frequency 49/51Hz, 45/55Hz automatic dual variable frequency Frequency accuracy: ±0.01Hz
External HV: UST, maximum test current is 5A/40~70Hz GST, maximum test current is 10kV/5A/40~70Hz
CVT self-excitation low-voltage output: Output voltage 3~50V, output current 3~30A
Measuring duration: About 30s, varies on measuring method
Input power supply: 180V~270VAC, 50Hz/60Hz±1%, supplied by alternating current or generator
Computer interface: Standard RS232 interface
Printer: Built-in micro-printer
Operating temperature: −10°C~+50°C
Relative humidity: <90%, non-condensing
Overall dimension: 470×340×35mm
Weight: 27.5kg for instrument, 5kg for accessories

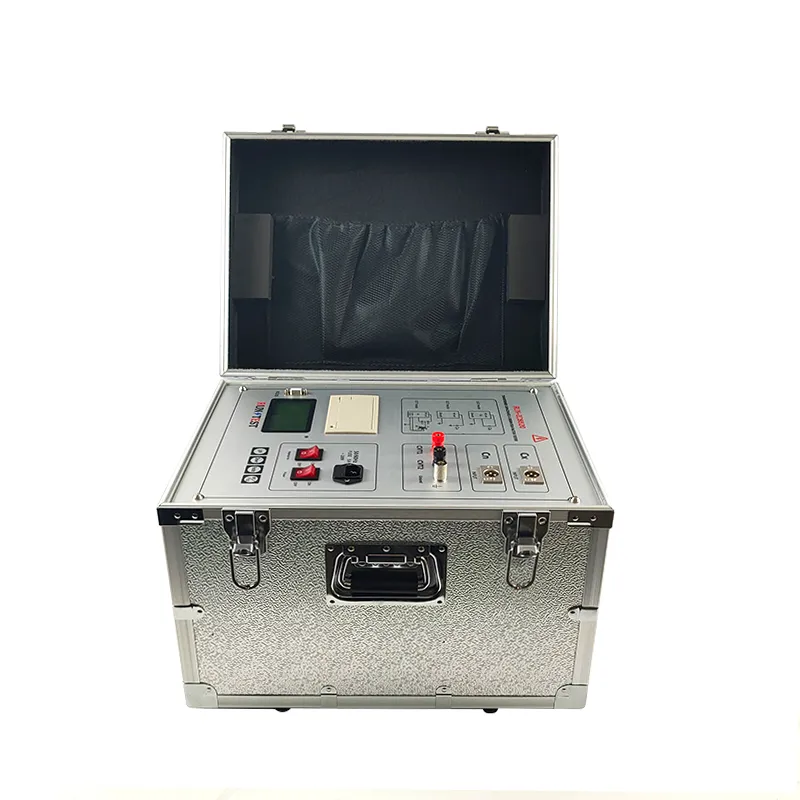

Features of this transformer Capacitance and Loss Factor Tester
1. Using frequency conversion anti-interference technology, accurate measurement even under 200% interference, and the test data is stable, suitable for on-site anti-interference dielectric loss test.
2. Adopting frequency floating, digital waveform analysis, and bridge self-calibration technologies, combined with high-precision three-terminal standard capacitors, ensure a high-precision dielectric loss measurement, and the accuracy and stability of the positive and negative wiring measurements are consistent.
3. The input resistance of all ranges of the instrument is lower than 2Ω, which eliminates the influence of the additional capacitance of the test line. It can be connected to an oil cup for precision dielectric loss test of insulating oil, and can be connected to a solid material measuring electrode for precision dielectric loss test of insulating material.
4. Automatically identify 50Hz/60Hz system power supply, support generator power supply, even if the frequency fluctuates greatly, it can be measured normally. The built-in series and parallel dielectric loss measurement models are fully compatible with the calibration table and dielectric loss standard, which is convenient for instrument verification.
5. The instrument is equipped with CVT testing function, which can achieve CVT self-exciting testing without external accessories and measure the capacitance and dielectric loss of C1 and C2 by at a time.
6. With an external standard capacitor interface, it can automatically track the frequency of the external test power supply from 40Hz to 70Hz, and support industrial frequency power supply and series resonance power supply for large-capacity high-voltage dielectric loss test.
7. Multiple safety protections to ensure the safety of human and equipment.
8. Built-in Micro-printer
9. Internal storage up to 100 sets.
