Measuring range: 0~100% (percentage composition of SF6)
Measuring precision: ±0.1%
Resolution: 0.1%
Response time: 15s
Sampling system: built-in pressure maintaining valve, filter and electronic mass flow meter
Sampling flux: 0.5~0.8L/min
Continuous working duration: 8 hours (by lithium ion battery)
Ambient temperature: -40°C~+80°C
Dimension: 320 x 270 x 140mm

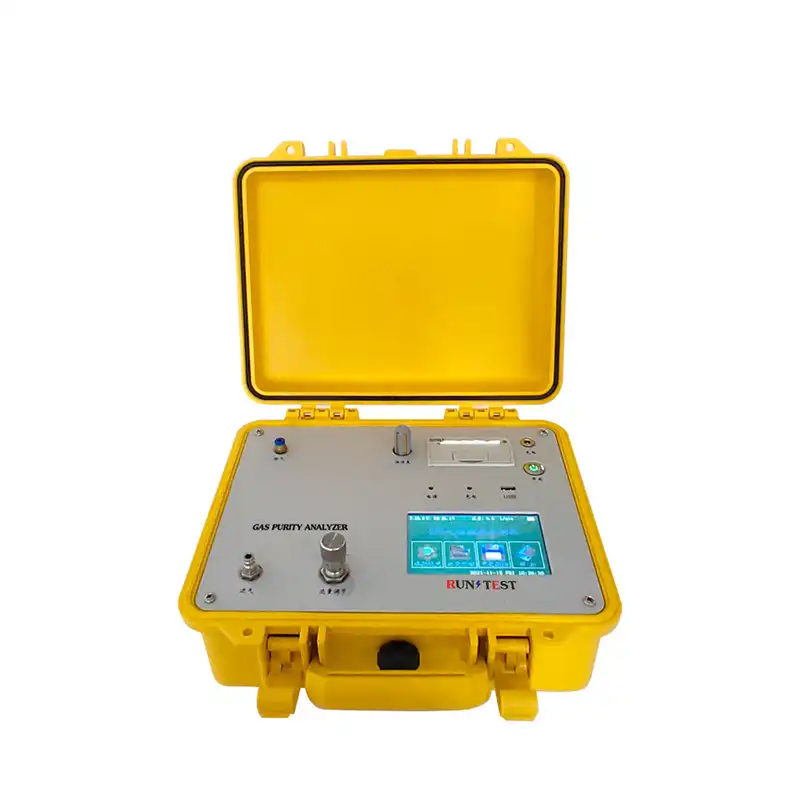

Brief Introduction of the SF6 Gas Purity Analyzer
SF6 Gas Purity Analyzer adopts thermal conductivity sensor with high stability and high precision, according to the difference in thermal conductivity of gas, it can accurately and quickly measure the content of random one gas of two mixture gases. Unique technique of wide-range temperature compensation is adopted, so as to guarantee the measurement precision of instrument. It can monitor gas purity.
SF6 purity analyzer Main features
1) Easy to use and carry, very fast measurement
2) Wide range of applications: Humidity measurement of air, nitrogen, inert gas and any gas that does not contain corrosive media, especially the humidity measurement of SF6 gas, which can be used by electric power, petrochemical, metallurgy, environmental protection, research institutes and other departments
3) Gas saving: the gas consumption during measurement is only about 2L (101.2kpa)
4) Data storage up to 100 sets
5) Comprehensive display: The LCD screen directly displays the dew point, micro water (ppm) at current temperature, micro water value at 20 ℃, ambient temperature, ambient humidity, time and date, battery power, etc.
6) Real-time data curve tracking, dew point change trend is clear and intuitive
7) USB interface for data export
8) Built-in Battery: built-in 6800mAh rechargeable lithium battery, work continuously for 8 hours
