Type: Vacuum circuit breaker
Range (mm): 50
Type: SF6 Circuit breaker
Range (mm): 300
Resolution (mm): 0.1
Accuracy: 1%±1digit
Type: Minimum circuit breaker
Range (mm): 1000
Power Supply: 110V/60Hz
Air pressure: 86 ~ 106 KPA
Temperature: −10~40℃
Relative Humidity: ≤80%RH, non-condensing
Insulation Resistance: ≥2MΩ
Dielectric strength: 1.5KV withstand voltage to chassis for 1 minute, no flashover and arcing
Timing (Range 1): 250~4000ms, resolution: 0.1ms, accuracy: 0.1ms±1digit
Timing (Range 2): 10000~20000ms, resolution: 1ms, accuracy: 1ms±1digit
Speed: Range: 20.00m/s, resolution: 0.001m/s, accuracy: ±0.01m/s±1digit
Current: Range: 20A, Resolution: 0.01A, accuracy: 1%±0.1A
Output Power: DC5 ~ 270V digital adjustable 20A (instant)

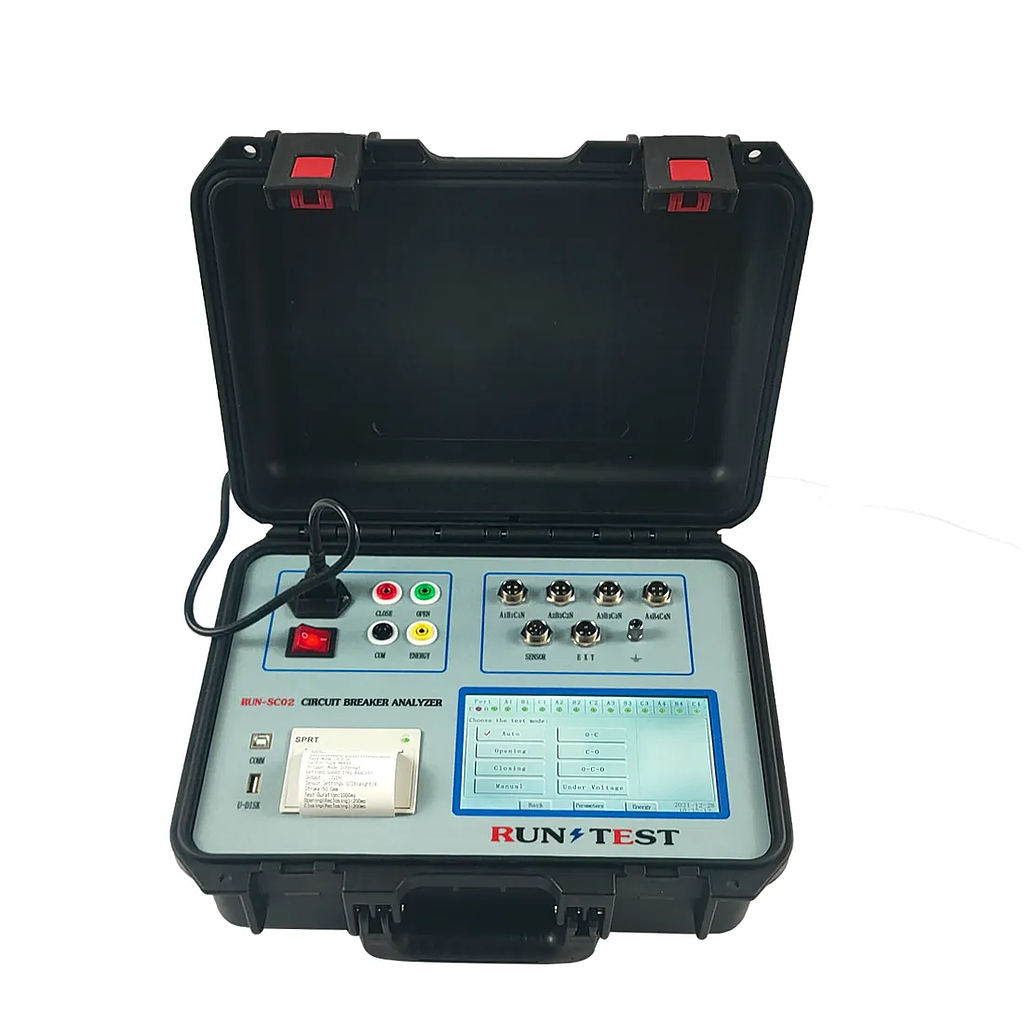

Brief Introduction of the Circuit Breaker Tester (High Voltage Switch Analyzer)
This High Voltage Switch Analyzer can record and measure the closing bounce time, the number of bounces, the bounce process, and the bounce waveform of each fracture.
This tester can record and calculate the rigid points, rigidity, maximum speed, average speed, total travel, opening distance, over travel, rebound amplitude, time-travel characteristic curve.
This tester can record the opening / closing current value and current waveform of the opening / closing coil, and provides DC5 ～ 270V / 10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage operation test of the circuit breaker, and measures the open circuit.
Switching Characteristic Analyzer Main features
1. Measure the inherent opening and closing time of 12-way metal fracture, time tolerance in same phase, time tolerance in different phase,close-open time and no flow time in process of close-open, open-close, open-close-open, closing bounce time,Some models can measure the pre-cast time of the closing resistance.
2. Record and measure the closing bounce time, bounce times, bounce process, and bounce waveform of each fracture.
3. Record and measure opening/closing speed, maximum speed, average speed, overall limit, clearance, overtravel limit switch,rebound amplitude, time-travel characteristic curve.
4. Record the opening/closing current value and current waveform of the opening/closing coil, and provides DC5-270V/10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage test of the circuit breaker, and measures the operating voltage value of the device.
5. Simultaneously measure 6-way closing resistance value and its pre-casting time in some models.
