Safety Standard: IEC 61010-1 CAT.IV 600V; IEC 61326 EMC specification: test, control and electrical equipment for testing; IEC60529 IP64 (Outer closed state)
AC Power: 220V±10%, 50/60 HZ, 20 VA
Battery: 16.8V Lithium ion rechargeable battery
Battery Life: 10000V@100M, 4 hours
Size (L x W x H): 26cm × 20cm × 16cm
Weight: 3kg
Test Voltage Accuracy: The nominal value 100% to 110%
Voltage Measurement Accuracy: ±5% ±3V
Current Test Range: 10mA
Current Measure Precision: 5% ±0.2nA
Short-Circuit Current: 5mA
Capacitance Test Range: 20uF
Capacitance Testing Accuracy: 15% ±0.03uF
Capacitor Discharge Rate: From 10000V to 10V, 0.5S/µF
Insulation Resistance Testing
Range 500V 1000V 2500V 5000V 10000V
Accuracy
Unspecified <100k <100k <100k <100k <100k
5% 100k-10G 100k-20G 100k-100G 100k-100G 100k-200G
20% 10G -100G 20G-200G 100G-1T 100G-1T 200G-2T
Unspecified > 100G > 200G > 1T > 1T > 2T

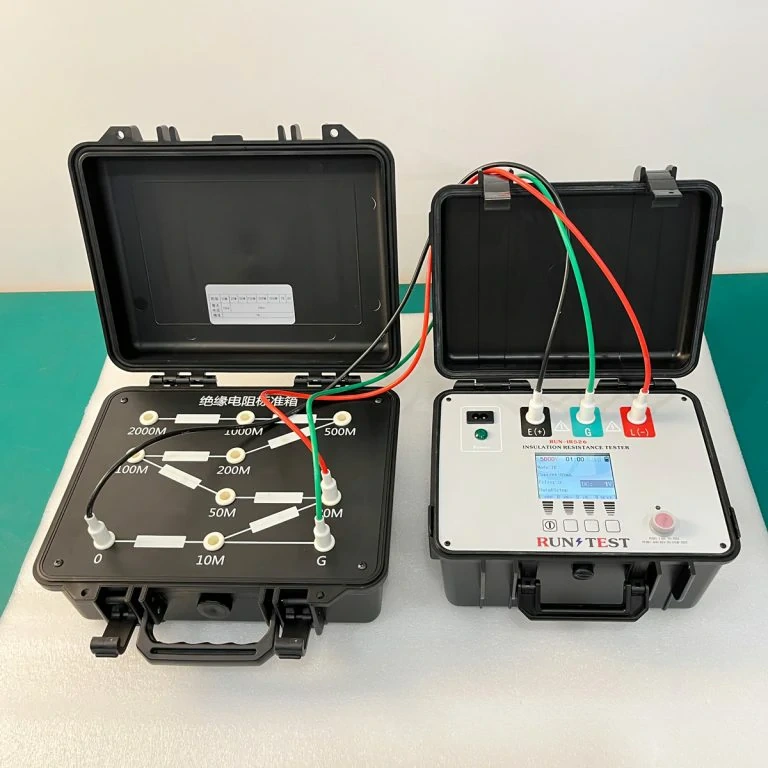

Ⅳ: Features of the digital resistance meter
5 ranges: 500V, 1000V, 2500V, 5000V, 10000V the maximum test can reach 10TΩ.
● Insulation resistance range 10TΩ@10kV
● The short-circuit current can be adjusted up to 5mA.(Can be customized to 10mA)
● Automatically display the test values of polarization index (PI) and absorption ratio (DAR), and can test leakage current and capacitance.
● Excellent anti-interference performance, when the interference current reaches 2mA, the instrument still guarantees the test accuracy.
● The capacitive test product is discharged quickly. When the cable is tested, manual discharge is not required, and the instrument automatically discharges quickly.
● 2 power modes: use lithium battery for power supply, battery life can reach 5 hours (10000V @ 100MΩ).
At the same time, it can be charged in use. In the event of a power failure, it can automatically switch from AC power supply to battery power supply.
● Digital filtering functions, external influence deviation display value causing mitigation point using filter function.
● Perfect protection function, and the spare fuse prompt functions.
