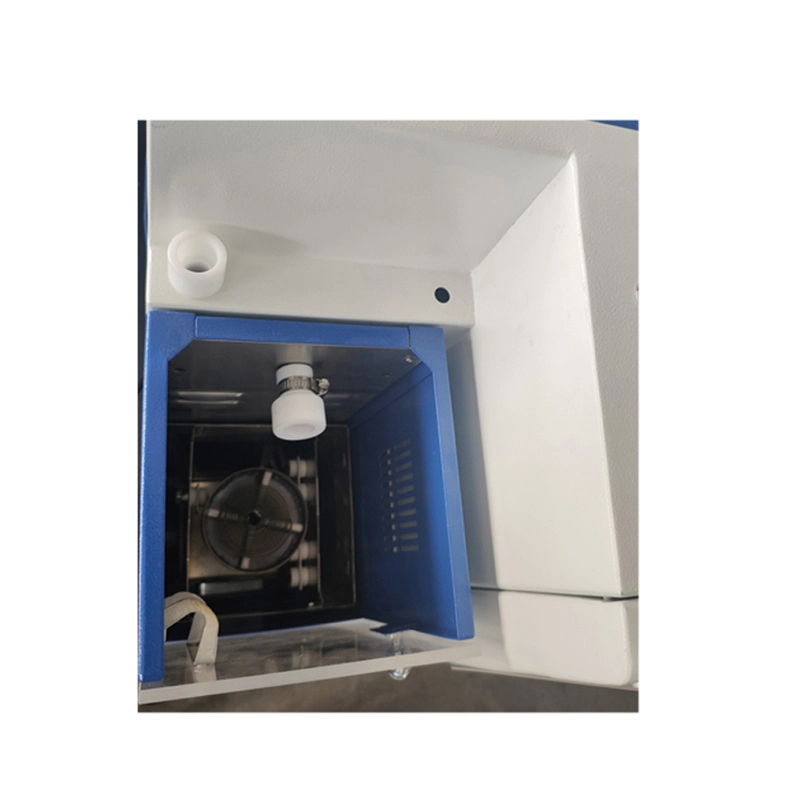

Run Test Run-DR01 Automatic Distillation Range Testing Equipment

Power Supply: AC220V ±10% 50Hz

Heating Power: 1000W

Whole Machine Power: Maximum 1600W

Cooling Power: 0.5kW

Steam Temperature Measurement Range: 0～400℃

Electric Furnace Temperature Measurement Range: 0～500℃

Refrigeration Temperature Measurement Range: 0～60℃

Refrigeration Control Accuracy: ±2℃

Temperature Measurement Accuracy: ±0.1℃

Volume Accuracy: ±0.1mL

Fire Alarm System: Nitrogen extinguishing

Applicable Standards: ASTM D86, ASTM D850 and other standards

Ambient Temperature: 10～35℃

Dimensions: 720×500×670mm

Instrument Weight: 80kg

Features about the Oil Distillation Range Apparatus

1.The Oil Distillation Range Tester has 10.4 inch color touch screen, clear image and easy operation

2.Imported photoelectric tracker to ensure the accuracy of distillation volume determination

3.The temperature of the recovery chamber can be set to ensure measurement accuracy

4.Imported Dan Foss (Secop) compressor, fast and stable refrigeration

5.Automatic detection of local atmospheric pressure, automatic correction to the temperature under standard atmospheric pressure

6.Display temperature, volume and related curves during measurement

7.Can be set to stop the test according to the steam temperature or the recovery volume

8.Germany imported temperature sensor (PT100)

9.With manual nitrogen fire extinguishing function, to avoid safety accidents caused by the bursting of the distillation flask
