Transmitter:
Function: to apply the location signal of a certain frequency onto pipelines
Output modes: induction, direct link, clamping
Working frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Frequency configuration at various modes:
Induction mode:65KHz, 83KHz
Direct link mode:128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Clamping mode:33KHz
Maximum power output:10W
Maximum voltage output:60V
Maximum current output:1A
Power supply: dual power supply, Lithium battery pack (energy-efficient and environmental-friendly)
Peak mode: two horizontal coils used
Broad peak mode: one horizontal coil used
Valley mode: one vertical coil, having the function of left and right orientation
Gain control: automatic gain, range of 0-100dB
Location accuracy: 5% of depth (range of depth: 0-3meter)
Range of measurement: 0-6m
Power supply: Lithium battery pack (energy-efficient and environmental-friendly)

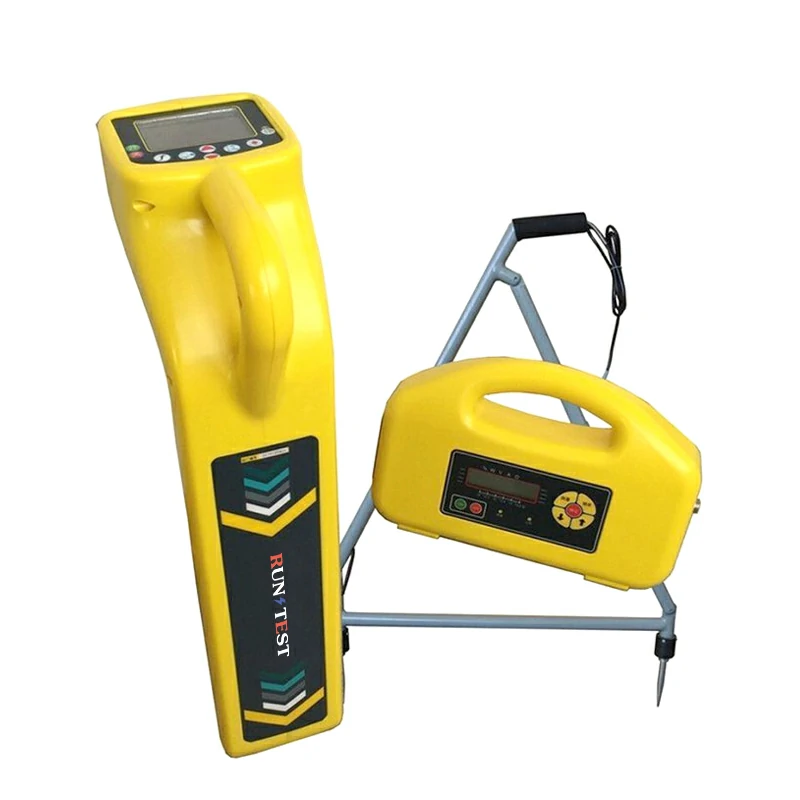

High Accuracy Underground Pipeline and Power Cable Finder Cable Fault Detector Line Cable Tester
This Cable Fault Locator underground pipeline detector in the case of non-excavation, the underground pipeline, cable, cable for accurate positioning and buried depth measurement, accurate search underground pipe outside the coating damage point, buried cable fault point location.The instrument combines ultra-narrowband filter, Bluetooth wireless communication, GPS positioning, professional data analysis software automatically map, test report automatically generated the most advanced technology, with superior anti-jamming capability, precise positioning and sounding, suitable for underground Metal pipeline detection and inspection line, pipeline management and maintenance, municipal planning and construction, power supply and other departments of the pipeline inspection, pipeline maintenance units is one of the necessary equipment.
Features for this Underground Cable Detector
pipeline detector features:
(1) multi-function
A、 Transmitter function: With the induction method, direct method and clamp method three signal application mode, suitable for different occasions.
B、 Receiver function: used for underground pipes, cable position, direction, depth and tube current measurement.
C. The left and right positioning arrows indicate the target pipeline position, positioning fast and accurate; front and rear arrows and dB values indicate the location and size of the damage points of the coating.
D、With backlight function, suitable for night use. 5、GPS geolocation function, pipeline to automatic mapping. 6、Professional data analysis software, automatic detection report generated.
E、Current measurement: Measure the current applied by the transmitter to the pipe under test.
F. Multimeter function: measurable output voltage, line voltage, line current, impedance and power. est G. the cable continuity and insulation quality before and after cable fault finding.
H. External induction clamp: suitable for testing the cable can not be directly applied to the signal of the place.
(2) High positioning accuracy
(3) Multi-Measuring depth method
(4) Strong anti-interference
(5) easy to operate
