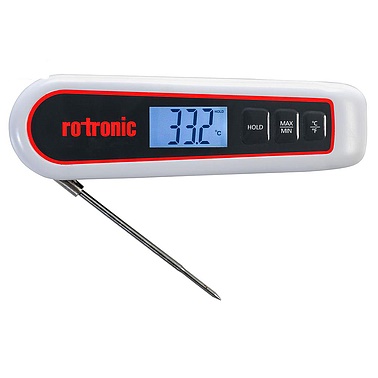

Rotronic TP31-S FOLDING THERMOMETER (-50-300 °C)

The TP31-S indicates temperatures quickly and reliably from within fluids and penetrable materials (core temperatures). The simple operation ensures an efficient measurement.

The rugged immersion probe can be folded out to an angle of 180°, and thanks to its robust hinge, can penetrate semi-solid and viscous plastic materials under considerable force.

Thanks to the IP65 protection, the TP31-S can be cleaned easily under running water.

Features:

• Automatic storage of the maximum and minimum value

• Data-hold mode

• Units can be switched between °C and °F

• Protection class IP 65

• Illuminated display

• Automatic range selection and display resolution of 0.1 °C or 0.1 °F

• HACCP certification: ISO22000: 2005

PROBE TYPE: NTC

DIAMETER OF PROBE TUBE: 3 mm

OPERATING RANGE: 0...60 °C (32...140 °F) 10...90 %RH

ACCURACY:

-50…-20 °C (-58…-4 °F): ±2.0 °C (±3.6 °F)

-20…100 °C (-4…212 °F): ±1.0 °C (±1.8 °F)

100…300 °C (212…572 °F): ±1 % of reading

MEASURING RANGE: -50…300 °C (-58…572 °F)

POWER CONSUMPTION: 2 x micro-cells (Type AAA, LR03)

BATTERY LIFETIME: 100 h (typically)

RESPONSE TIME: 0,5...2 s

ENGINEERING UNITS DISPLAYED: °C / °F

DISPLAY TYPE: LCD, 1-line

DISPLAY RESOLUTION:

0.1 °C/°F @ T < 199 °C/°F

1 °C/°F @ T > 199 °C/°F

BACKLIGHT: with Backlight

MATERIAL: ABS, stainless steel

IP PROTECTION RATING: IP65

STORAGE AND TRANSPORT CONDITIONS: -30...70 °C (-22...158 °F) <80 %RH

DIMENSIONS: 241x46x27mm
