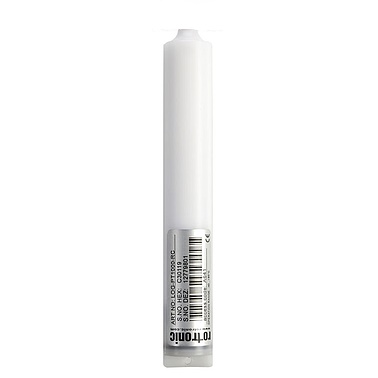

Rotronic LOG-PT1000-RC WIRELESS TEMPERATURE DATA LOGGER

Wireless temperature data logger (PT1000).

Stainless steel sensor tip at housing standard version (433.92 MHz)

Applications:

Phamaceutical and food industries, meteorology, environmental engineering, museums/glass cabinets, monitoring of storerooms, mechanical engineering, chemical industry, research and development

Features:

• PT1000 integrated temperature probe

• Accuracy: ± 0.1 °C at 0 °C

• Radio frequency: 433.92 MHz for best penetration through brickwork and walls

• The use of the frequency 433.92 MHz is not permitted in the USA

• High storage capacity: up to 300,000 measured values with serial number, time and date

• Flash memory for data security in the case of power failures

• Long-term recording up to 6 years without battery replacement possible

• Transmission distance with USB/LAN wireless adapter: up to 300 m (free field)

• Data security: PIN (for activation and data access)

• Temperature application range: -40 to + 85 °C

• Plastic housing, white, IP69 (submersible)

PROBE TYPE: Pt-1000

OPERATING RANGE: -40…85 °C / 0…100 %rh

ACCURACY AT 23 ±5 °C: ± 0.1 K at 0 °C

MEASURING RANGE WITH INTEGRATED PROBE: -40…85 °C / 0…100 %rh

POWER CONSUMPTION: Lithium (Li-SOCl2) battery 2400 mAh

TEMPERATURE SENSOR: Pt1000(metal point at the end of case)

MEMORY SIZE: 2,048 KB of approximately 500,000 readings, non-volatile, even during a power outage

EXPLOITATION SOFTWARE: ROTRONIC HW4

DATA LOGGING: 300’000 measured values with serial number, time and date

USER INFORMATION: from Software HW4 (devicemanager)

DATA PROCESSING VIA HW4: Yes

DEVICE PROTECTION BY PASSWORD: Yes

CHOICE OF BATTERY / RECHARGEABLE BATTERY: Lithium (Li-SOCl2) Battery 2400 mAh (Exchangeable)

COMMUNICATION INTERFACES: LAN interface / USB dongle / GPRS logger

ENCLOSURE MATERIAL: POM

IP PROTECTION RATING: IP69 (submersible)

FDA/GAMP COMPATIBILITY: FDA 21 CFR Part 11 and GAMP compatible

DIMENSIONS: 140 x Ø 20 mm
