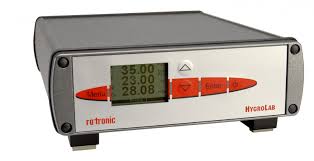

ROTRONIC provides a high-end laboratory device – the HygroLab C1 – for water activity measurements with up to four probes. Connect station probes and insertion probes for measuring water activity in cheese, meat, tobacco, building materials, animal feed, pharmaceuticals products and much more.
Validated software
Easy-to-use and intuitive, the laboratory grade indicator can be used by anyone. HW4 running on a PC provides remote monitoring with charting and data recording functions.
Features:
• 4 input channels for HC2 station probes or HC2 insertion probes can be connected for measurement of water activity, relative humidity and temperature
• Aw Quick function for fast measurement results (typically 4-5 minutes)
• Audible alarm to indicate completed measurement
• Saves up to 2,000 data records with %RH, °C/°F, date and time
RANGE OF APPLICATION: -10…60 °C (14…140 °F) / 0…1 Aw / 0…100 %RH
POWER CONSUMPTION: 8…16 VDC (+ AC adapter)
CURRENT CONSUMPTION: Max. 120 mA (12 VDC, backlight ON, 4 probes connected, Ethernet)
CALCULATIONS: All psychrometric calculations available or user defined calculations
PROBE CONNECTIONS: 4 x HC2 station probe or HC2 insertion probe
START-UP TIME: 3 s
MEASUREMENT INTERVAL: 1 s
PARAMETERS SHOWN: Aw, % RH, °C, °F
LCD: 3-line alphanumeric with trend indicators
CLOCK: Real time clock provides a time stamp for every measurement
MEMORY SIZE: 4 x 500 Aw values (2,000 Aw values)
HW4 COMPATIBLE: V3.1 and higher
PROBE ADJUSTMENT: Single or multiple point for relative humidity & temperature.
One or two point temperature
AW QUICK FUNCTION: Integrated and via HW4 software HW4-P-QUICK-Vx (in shipment included)
COMMUNICATION INTERFACES: Ethernet / USB
MATERIAL: Aluminum, ABS-757
IP PROTECTION RATING: IP21
FDA / GAMP: FDA 21 CFR part 11 / GAMP5
CE / EMC CONFORM: EMC 2008/108/EG
DIMENSIONS: 225 x 170 x 70 mm
