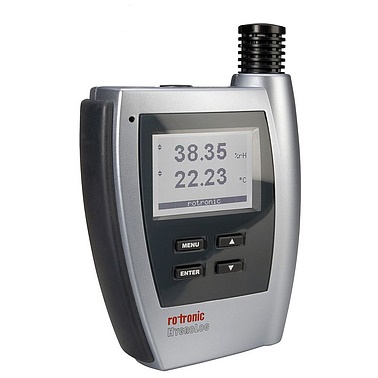

Rotronic HL-NT2 DATA LOGGER FOR HUMIDITY, TEMPERATURE

The HL-NT2 is the basic version in the HL-NT data logger series. Further probes can be connected to the data logger via a docking station.

Applications: Clean rooms, storerooms, server rooms, production areas, residential and office rooms, shipping

Features

• Saves 47000 data records per MB card storage capacity (incl. 32 MB card)

• Range of application: -30…70 °C (-10…60 °C, with display), 0…100 %rh

• Calculation of all psychrometric parameters

• Integrated clock for timestamp for every measured value

• Freely selectable logging interval, 5 s…24 h

• Power supply: 9 V (battery, rechargeable battery or docking station)

• Networkable with PC, via docking station (USB, Ethernet, WLAN)

• Audible alarm

• IP40

OPERATING RANGE: -10…60 °C / 0…100 %rh

ACCURACY AT 23 ±5 °C: ±0.8 %rh / ±0.1 K

MEASURING RANGE WITH INTEGRATED PROBE: -100…200 °C / 0…100 %rh

POWER CONSUMPTION: via optional docking station

LONG-TERM STABILITY: <1 %rh / year

HUMIDITY SENSOR: Hygromer IN-1

TEMPERATURE SENSOR: PT100 1/3 DIN Class B

PROBE PROTECTION: ABS

RESPONSE TIME T 63: Typical 4 sec.

PSYCHROMETRIC CALCULATIONS: All psychrometric values

NUMBER OF PROBE INPUTS: 1

INPUT FOR TEMPERATURE SENSOR: Optional adapter cable

CALIBRATION / ADJUSTMENT: with HW4 / docking station

MEASUREMENT INTERVAL: between 5 s and 24 h

ENGINEERING UNITS DISPLAYED: Value display, status display, operation, adjustment and view the log data.

BACKLIGHT: with Backlight

KEYPAD (WITH DISPLAY ONLY): Yes

ALERTING: LED status indicator and audible alarm (beeper)

ACOUSTICAL ALARM (BEEPER): Yes

REAL TIME CLOCK W.BACKUP BATTERY: Yes

MEMORY SIZE: Memory up to 47,000 records per MB on memory cards

EXPLOITATION SOFTWARE: ROTRONIC HW4 / card reader, PDA

MENU GUIDANCE: Yes

TREND INDICATOR: Yes, for models with display

PROBE ADJUSTMENT BY SOFTWARE: Yes, with service cable

PROBE ADJUSTMENT BY KEYPAD: display / keyboard

EVENT LOGGING: via software HW4

COUNTRY SETTINGS: via software HW4

CHOICE OF BATTERY / RECHARGEABLE BATTERY: Operation with a rechargeable battery or battery

COMMUNICATION INTERFACES: via docking station

SERVICE INTERFACE: USB

PROBE MATERIAL: Polycarbonate

ENCLOSURE MATERIAL: ABS

ANTI THEFT DEVICE: Optional with Docking Station

FDA/GAMP COMPATIBILITY: FDA 21 CFR Part 11 and GAMP compatible

DIMENSIONS: 128 x 109 x 42 mm
