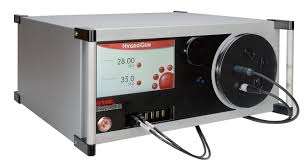

Rotronic HG2-S HUMIDITY GENERATOR

Features

• Generates a stable reference environment Range of application: 0…60 °C, accuracy: ±0.05 K

• Reaches equilibrium humidity in typically 5 minutes

• Suitable for all humidity and temperature probes

• Calibrates up to 5 probes simultaneously

• Easy-to-use trouchscreen monitor

• DVI interface for external monitor

• USB interface for connection of keyboard, mouse and ROTRONIC USB probes

• The integrated HW4 software ensures easy calibration and adjustment of all probes.

• External heated connections for a dew point mirror reference are standard. This allows the user to adjust the reference probes

with extremely high precision or to reduce the total calibration uncertainty.

• The water quality is kept at a high level by a UV sterilizer, meaning algae and bacteria cannot form.

CONTROL RANGE MAX.:

5…95 %RH and 0…60 °C

(2...99 %RH / -5...60 °C with range extension)

CONTROL STABILITY: <±0.01 °C,<± 0.1 %RH

TEMPERATURE GRADIENT: <±0.05 °C (15...50 °C), <±0.1 °C (5...60 °C), <±0.15 °C (0...5 °C)

HUMIDITY GRADIENT: 0.1 %RH or better

TYPICAL TIME TO SET-POINT: <5 minutes (5...95 %RH)

TEMPERATURE SENSOR: PT100 1/3 DIN Class B

HUMIDITY SENSOR: Hygromer

CONTROL PROBE ACCURACY: ±0.8 %RH (23 °C ±5) / ±1.5 %RH (0...60 °C) /

±0.1 °C (23 °C ±5) / ±0.2 °C (0...60 °C)

DESICCANT: Molecular sieve

SATURATOR: Front panel fill, on-screen level indication

WATER QUALITY: Distilled or deionised water

WATER VOLUME: approx. 80 ml

CHAMBER VOLUME: 2 litres, effective working volume 1.5 litres, Ø 110 mm, 145 mm deep

EXTERNAL INTERFACE: USB (9 ports), Ethernet

POWER CONSUMPTION: 110...230 VAC, 50...60 Hz, 3 A

EXTERNAL CONNECTIONS: 6mm temperature controlled sample loop connections

ENCLOSURE MATERIAL: Powder coated aluminium

DIMENSIONS: 450 x 406 x 205mm

WEIGHT: 13 kg
