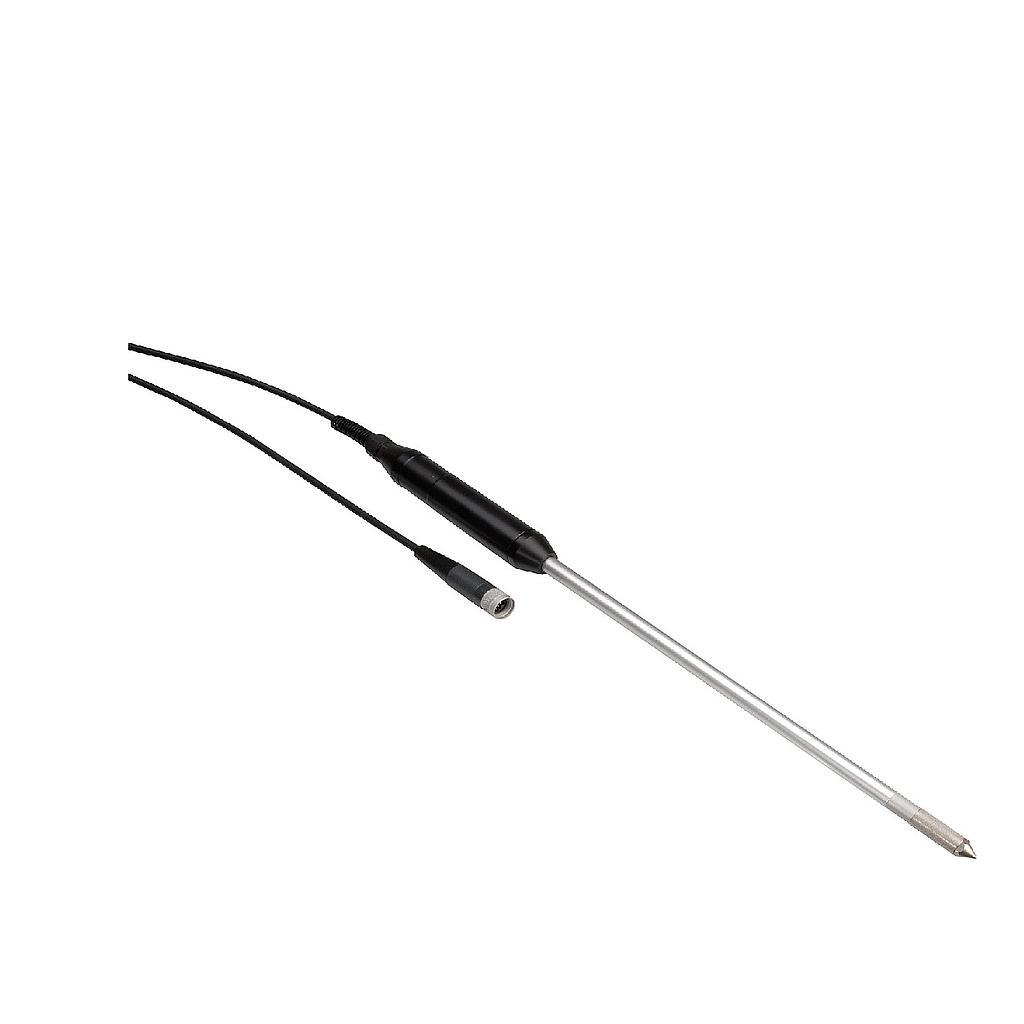

Rotronic HC2-HP50 AW Probe

PROBE TYPE: Insertion probe

FOR USE WITH: HygroLab C1, HP23-AW-A

OPERATING RANGE: -40…85 °C / 0…100 %rh

RANGE OF APPLICATION: -40…85 °C (-40…185 °F) / 0…100 %RH

ACCURACY AT 23 ±5 °C: ± 0.008 aw / 0.8 %rh / ±0.1 K

ACCURACY W. ADJUSTMENT PROFILE "STANDARD": at 23 °C / 10, 35, 80 %rh ± 0.8 %rh / ± 0.1 K

POWER SUPPLY: 3.2…5 VDC, calibrated at 3.3 VDC, current: ~4.5 mA

LONG-TERM STABILITY: <1 %rh / year

HUMIDITY SENSOR: HYGROMER® WA-1 / Pt-100, 1/3 DIN Class B

TEMPERATURE DEPENDENCE: 0.001 K/K, 0.0002 aw/K

TEMPERATURE SENSOR: PT100 1/3 DIN Class B

FILTER TYPE: Sintered steel with 5 μm pore size

RESPONSE TIME T 63: <20 s, with filter

ALLOWED WIND SPEED: 40 m/s, with filter

PSYCHROMETRIC CALCULATIONS: Dew or frost point

REPRODUCIBILITY AIRCHIP: <0.02 %rh / 0.01 K

START-UP TIME: 1,5 s

MEASUREMENT INTERVAL: 1 s

EXPLOITATION SOFTWARE: ROTRONIC HW4

PROBE ADJUSTMENT BY SOFTWARE: 1 Point & multipoint %rh & °C

FIRMWARE UPDATE: With internet and HW4 software

USER INFORMATION: from Software HW4 (devicemanager)

DATA PROCESSING VIA HW4: with interface cables

DEVICE PROTECTION BY PASSWORD: Yes

TYPE OF OUTPUT SIGNALS: 2 x 0…1 VDC

ANALOGUE OUTPUTS SCALEABLE BY THE USER: Yes

ANALOG OUTPUT SIGNAL (STANDARD): 0…1 V = 0…100 %rh; 0…1 V = -40…60 °C

DIGITAL OUTPUT SIGNAL (STANDARD): UART

SERVICE INTERFACE: UART

REVERSE VOLTAGE PROTECTION: Mechanically in the connector

MAX. CABLE LENGTH: Up to 5 m with passive cable. Up to 100 m with active cable.

PROBE MATERIAL: Stainless steel 1.4305 (V2A)

ENCLOSURE MATERIAL: POM

MATERIAL: Stainless steel DIN 1.4305 (probe), POM (handle)

IP PROTECTION RATING: IP50

FDA/GAMP COMPATIBILITY: FDA 21 CFR Part 11 and GAMP compatible

FDA / GAMP: FDA 21 CFR part 11 / GAMP5

CE / EMC CONFORM: 2007 / 108 / EG

DIMENSIONS: Ø10 x 500 mm
