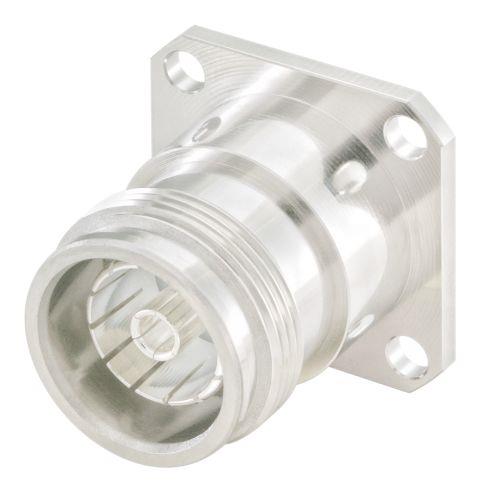

Rosenberger 64K401-273B1 Panel Receptacles PANEL JACK

Gender: Jack (Socket)

Polarity: Standard

Frequency: 12 GHz

IP Rating: IP68

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: 4.3-10

Body Style: Flange

Cable Type: RTK-FS 250, UT 250

Body Finish: Bronze

Orientation: Straight

Contact Type: Socket (Female)

Body Material: Brass

Mating Cycles: 100 Cycle

Mounting Style: Flange Mount

Voltage Rating: 500 V

Contact Plating: Silver

Contact Material: Copper Alloy

Maximum Frequency: 12 GHz

Termination Style: Solder

Coupling Mechanism: Push Pull

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 55 C
