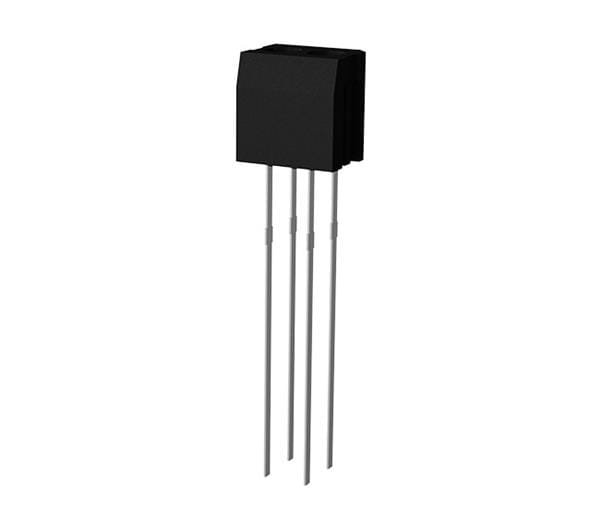

ROHM Semiconductor RPR-220 Optical Switches, Reflective, Phototransistor Output PHOTO SENSOR DISTANCE 6mm

Width: 4.9 mm

Height: 6.5 mm

Length: 6.4 mm

Fall Time: 10 us

Rise Time: 10 us

Wavelength: 800 nm

Output Type: Phototransistor

Unit Weight: 1.298 g

REACH - SVHC: Details

Mounting Style: Through Hole

Sensing Method: Reflective

Sensing Distance: 6 mm

Termination Style: Solder Pin

Number of Channels: 1 Channel

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.34 V at 50 mA

Vr - Reverse Voltage: 5 V

Pd - Power Dissipation: 80 mW

Maximum Collector Current: 30 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

Collector- Emitter Voltage VCEO Max: 30 V
