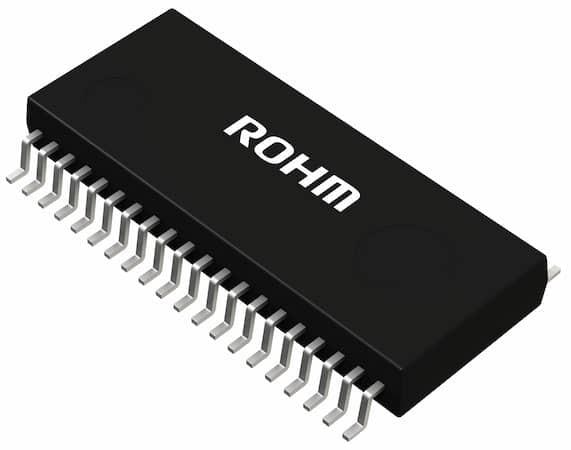

ROHM Semiconductor BU97601FV-ME2 LCD Segment Drivers BU97601FV-M is a 1-4, 1-3, 1-2duty or Static general-purpose LCD driver that can be used for automotive applications and can drive up to 116 LCD Segments. <br>This product can support VA LCD displays, which has better optical performance with higher

Qualification: AEC-Q100

Interface Type: 3-Wire

Mounting Style: SMD/SMT

Number of Segments: 116 Segment

Supply Current - Max: 250 uA

Supply Voltage - Max: 6 V

Supply Voltage - Min: 2.7 V

Pd - Power Dissipation: 700 mW

Maximum Clock Frequency: 1 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
