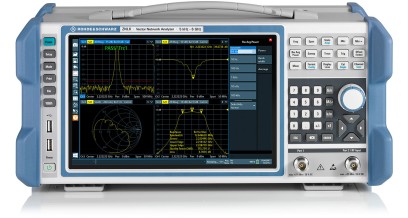

Manufacturer: Rohde & Schwarz
Model: ZNL3
Warranty: 12 months
Frequency range: 5 kHz to 3 GHz(resolution 1 Hz)
Dynamic range: >120 dB (spec.); typ. >130 dB
Output power: 0 dBm (spec.); typ. + 3 dBm
Trace noise: <0.0035 dB (spec.); typ. < 0.0005 dB
Measurement speed: 16.7 ms
Measurement parameters Sxy; wave quantities, ratios, impedance parameters (Zxy);
attmitance parameters (Y); stability factors
Display graphs dB mag, phase, Smith, polar, SWR, unwr phase, lin. mag,
inv. Smith, real, imag, delay
Measurement data points
- VNA mode 1 to 100001
- SA mode 101 to 100001
Spectrum analysis (R&S®ZNL3 with R&S®ZNL3-B1 option)
Speed 9.6 ms (100 kHz IFBW),10 µs per point
Display: Yes
External PC required: No
Dimensions (W × H × D): 408 mm × 186 mm × 235 mm (16.06 in × 7.32 in × 9.25 in)
Weight (depending on configuration): 6 kg to 8 kg
Scope of delivery
- Printed operating manual
- CD with manual
- Power cable
